Nylon 66 Glass Filled Injection Molding Case Study
Nylon 66 Glass Fiber 35% injection molded component developed in India for recurring international production. Manufyn coordinated tooling development, injection molding, production quality control and international logistics.
From Engineering Requirement to Recurring Production
This project demonstrates a practical route for manufacturing an engineering plastic component in India and supplying it to an international customer.

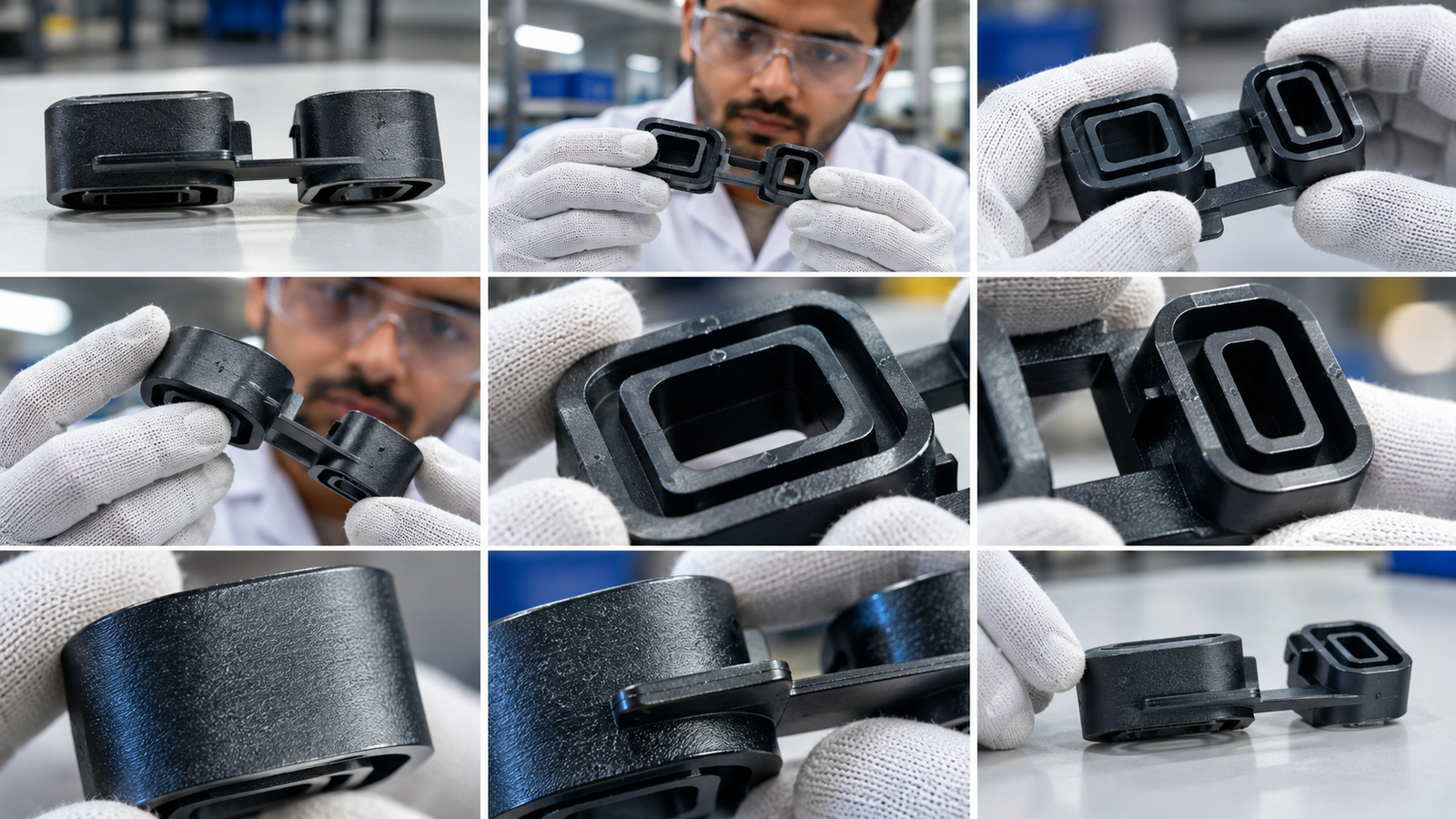

The component was manufactured using Nylon 66 Glass Fiber 35% in black.
The project required coordination across tooling, injection molding, quality control, packaging and international logistics.
Material: Nylon 66 Glass Fiber 35%
Process: Injection Molding
Mold Cost: $200
Piece Price: $0.07
Tool Development: 7 days
What Manufyn Coordinated
- Engineering requirement review
- Injection molding feasibility
- Tooling development
- Production coordination
- Quality control
- Packaging
- First batch air shipment
- Recurring sea shipments
Nylon 66 GF35 Injection Molding Specification
The component uses an engineering thermoplastic formulation requiring controlled injection molding, tooling and quality processes.
| Component | Custom engineering plastic component |
|---|---|
| Material | Nylon 66 Glass Fiber 35% |
| Material Family | Glass reinforced polyamide / PA66 GF35 |
| Colour | Black |
| Manufacturing Process | Injection Molding |
| Mold Cost | $200 |
| Piece Price | $0.07 / piece |
| Mold Development | 7 days |
| Initial Shipment | Air Freight |
| Recurring Shipment | Sea Freight |
| Manufacturing Location | India |
Why Nylon 66 GF35 Requires Process Control
Glass fiber reinforced Nylon 66 is an engineering thermoplastic where material preparation, fibre orientation, shrinkage, dimensional behaviour and tooling wear must be considered.
Moisture Control
Nylon is moisture sensitive and material preparation is important before injection molding.
Glass Fibre Orientation
Fibre orientation follows melt flow and can influence mechanical and dimensional behaviour.
Shrinkage
Glass reinforced Nylon can exhibit directional shrinkage requiring appropriate tooling consideration.
Tool Wear
Glass reinforcement is abrasive and tooling wear should be considered during mold design.
Cooling
Cooling strategy influences dimensional stability, cycle time and repeatability.
Ejection
Ejection must be considered during mold design to prevent damage and deformation.
Injection Mold DFM Considerations
Injection molding cost and quality are strongly influenced by how the component is designed for tooling, filling, cooling and ejection.
Parting Line
Parting line selection affects tooling complexity, flash control and component appearance.
Draft
Appropriate draft helps reduce sticking and improves reliable part ejection.
Wall Thickness
Wall thickness transitions can affect filling, cooling, shrinkage and warpage.
Gate Location
Gate location influences filling behaviour, packing and glass fibre orientation.
Venting
Adequate venting helps reduce trapped air and molding related defects.
Cooling
Balanced cooling supports dimensional stability and repeatable production.
For more engineering guidance, explore the Manufyn Design for Manufacturability Guide .
$200 Injection Mold Developed in 7 Days
Tooling was developed within seven days, allowing the project to move rapidly from manufacturing requirement to production.
The tooling process required coordination between engineering requirements, mold design, tooling development, mold trial and production release.
The resulting tooling investment was $200 while the recurring piece price was $0.07 per component.
From RFQ to Recurring Production
Manufyn coordinates the manufacturing workflow rather than simply forwarding an RFQ to an unknown supplier.
RFQ Review
Drawing, CAD model, material and quantity are reviewed.
DFM Review
Geometry is evaluated for injection molding.
Supplier Selection
Manufacturing capability and tooling capability are evaluated.
Tool Development
Injection mold development is coordinated.
Production
Parts are molded, inspected and prepared for dispatch.
Global Logistics
First batch moved by air and recurring shipments moved through sea freight.
Quality Control Across the Production Cycle
For engineering plastic components, quality control extends beyond visual inspection.
- Material grade verification
- Material preparation
- Dimensional inspection
- Critical feature inspection
- Visual inspection
- Flash and short-shot inspection
- Warpage inspection
- Production lot traceability
- Packaging inspection
Repeatability Matters for Monthly Production
Once tooling is developed, recurring production requires consistent molding conditions, inspection practices, packaging and dispatch planning.
Manufyn coordinates these activities between the customer and Indian manufacturing partners to support recurring procurement.
Low Tooling Investment With Competitive Piece Economics
The project combined rapid tooling development with a low recurring part cost and a logistics strategy designed around recurring monthly shipments.
Air for the First Batch. Sea for Monthly Supply.
The logistics strategy changed after the initial shipment to balance speed with recurring freight economics.
First Batch — Air
The first production batch was shipped by air to prioritize delivery speed and get the product into the customer’s supply chain quickly.
Monthly Supply — Sea
Recurring monthly dispatches moved through sea freight for better logistics economics.
More Than an Algorithmic Supplier Match
International procurement requires engineering judgement, supplier evaluation, quality control and continuous project coordination.
Manufyn acts as the procurement and manufacturing coordination layer between international buyers and Indian manufacturers.
- Manufacturing feasibility
- Indian supplier identification
- Supplier capability evaluation
- Injection mold coordination
- Production follow-up
- Quality inspection
- Packaging coordination
- International logistics
- Recurring procurement management
