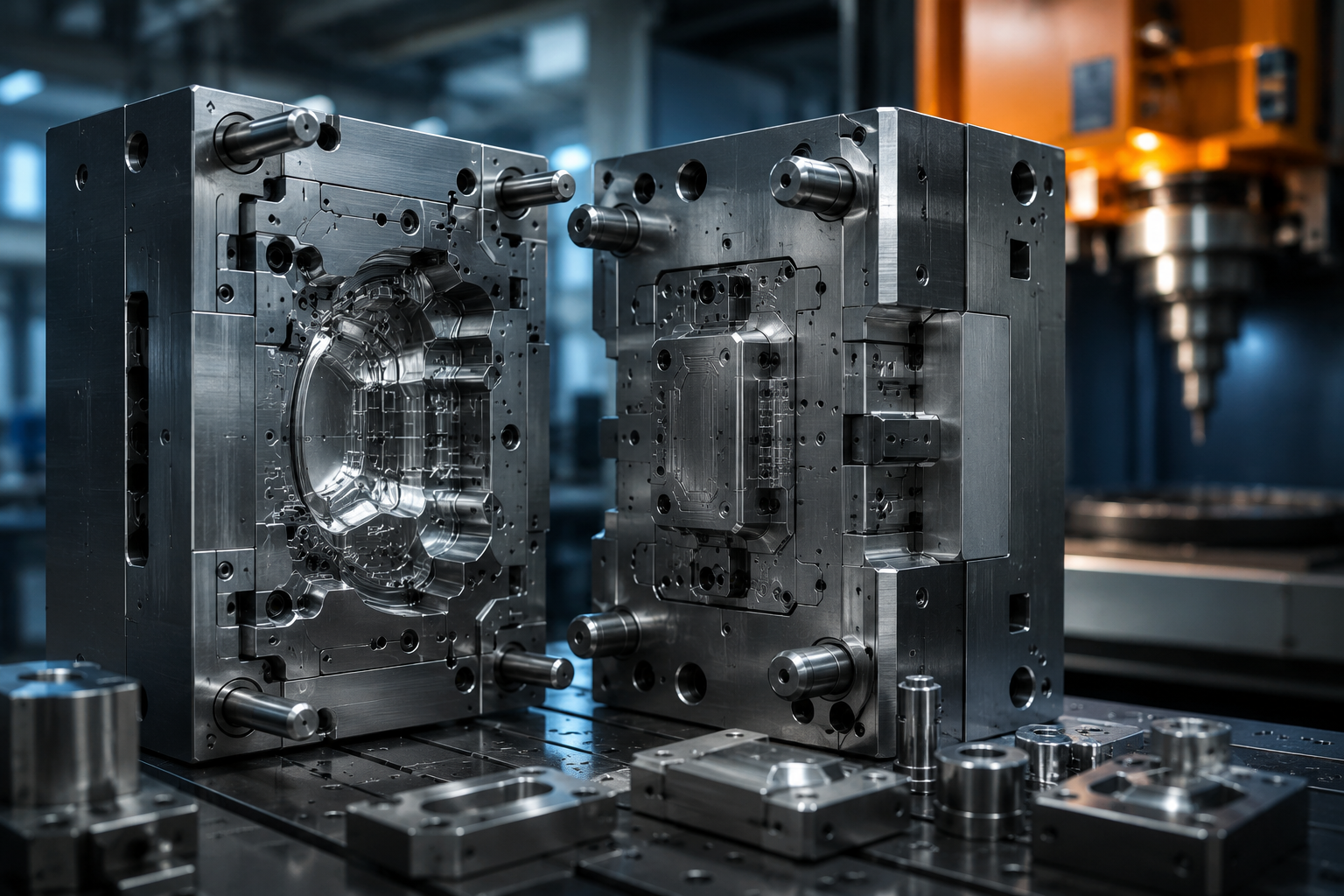

Mold Manufacturing
Process
The mold manufacturing process involves design validation, precision CNC machining, EDM, polishing, assembly, and mold trials to produce reliable injection molds. Manufyn partners with certified Indian tool rooms to deliver prototype and production tooling with complete engineering support, quality assurance, and global project management.
Complete Mold Manufacturing Process
Every successful injection mold begins with proper engineering and ends with validated production trials. At Manufyn, each project follows a structured manufacturing process to ensure dimensional accuracy, long mold life, faster production cycles, and consistent part quality.
Product Review
Customer drawings are reviewed for manufacturability, material selection, tolerances, and production feasibility.
DFM & Mold Design
Our engineering team performs DFM analysis, gate design, cooling layout, and complete 3D mold design before manufacturing.
Steel Selection
The appropriate mold steel such as P20, H13, NAK80, S136, or 420 Stainless Steel is selected based on production requirements.
Precision Machining
CNC milling, drilling, grinding, EDM, and wire cutting are performed to achieve micron-level accuracy.
Assembly & Mold Trials
The mold is assembled, polished, tested through trial runs, inspected, and approved before serial production.
Technologies Used During Mold Manufacturing
Modern injection molds require multiple precision manufacturing technologies to achieve excellent dimensional accuracy, long tool life, and consistent molding performance. Manufyn works with certified tool rooms equipped with advanced machining and inspection facilities.
CNC Machining
High-speed CNC machining is used to manufacture mold plates, cavities, cores, inserts, and precision components with excellent repeatability and tight tolerances.
Learn about Prototype Tooling →EDM & Wire EDM
Electrical discharge machining produces complex cavities, sharp corners, ribs, and intricate geometries that cannot be achieved using conventional machining methods.
Explore Production Tooling →Grinding & Polishing
Surface grinding and mirror polishing improve dimensional accuracy, surface finish, mold appearance, and overall part quality for demanding applications.
420 Stainless Steel Mold →CMM Inspection
Coordinate Measuring Machines verify every critical dimension before assembly, ensuring every mold component meets engineering specifications.
Quality Inspection →Heat Treatment
Controlled hardening processes improve wear resistance, durability, and mold life, making tools suitable for long production runs.
NAK80 Mold →Mold Assembly & Trials
After assembly, every mold undergoes trial production, dimensional inspection, and process optimization before being approved for mass production.
Injection Molding Services →Types of Injection Molds We Manufacture
Every plastic component has unique design and production requirements. Manufyn works with experienced tool manufacturers capable of producing prototype molds, production molds, hot runner systems, multi-cavity tools, and complex precision molds for global industries.
Prototype Molds
Fast and economical molds for product validation, functional testing, and low-volume production before mass manufacturing.
Explore Prototype Tooling →Production Molds
Engineered for high-volume manufacturing with hardened steel, extended mold life, and consistent part quality.
Explore Production Tooling →Hot Runner Molds
Designed to reduce material waste, improve cycle time, and enhance production efficiency for large manufacturing volumes.
Learn More →Cold Runner Molds
Reliable tooling solution for cost-effective production, material flexibility, and easier maintenance across multiple applications.
Compare Runner Systems →Multi-Cavity Molds
Manufacture multiple identical components in every molding cycle, improving productivity and reducing part cost.
Injection Molding →Family Molds
Produce different plastic components in one molding cycle, making assembly projects more economical.
View Services →Insert & Overmolds
Combine plastic with metal inserts or multiple materials to improve strength, functionality, and product performance.
Explore Overmolding →Precision Engineering Molds
High-accuracy molds manufactured for automotive, medical, electronics, robotics, and industrial engineering applications.
Discuss Your Project →Why Mold Manufacturing Quality Matters
A precision mold is the foundation of a successful injection molding project. Even minor inaccuracies during tool manufacturing can increase production costs, reduce mold life, create dimensional variation, and lead to frequent maintenance. Investing in a well-engineered mold improves long-term productivity and delivers consistent part quality.
At Manufyn, every mold project is managed through experienced engineers, certified tool rooms, and rigorous inspection procedures to ensure dependable performance from the first production run.
- ✔ Longer mold life and reduced maintenance
- ✔ Better dimensional accuracy
- ✔ Improved surface finish
- ✔ Lower cycle time
- ✔ Consistent production quality
- ✔ Reduced material waste
- ✔ Faster project approval
- ✔ Lower manufacturing cost over time
Higher Production Efficiency
Accurate tooling reduces downtime, improves machine utilization, and delivers stable production throughout the mold’s service life.
Superior Part Quality
Precision machining and careful mold assembly help produce components with excellent dimensional consistency and appearance.
Reduced Operating Costs
Well-designed molds require fewer repairs, less maintenance, and fewer production interruptions, lowering overall manufacturing costs.
Reliable Global Supply
Our engineering team works closely with certified Indian tool rooms to deliver export-quality molds for customers across multiple industries.
Industries We Support
Our mold manufacturing capabilities support businesses across diverse industries requiring precision tooling, consistent quality, and dependable production performance. From prototype development to high-volume manufacturing, we help companies bring innovative products to market faster.
Automotive
Precision molds for interior, exterior, under-the-hood, and functional automotive plastic components.
Learn More →Robotics
High-precision tooling for robotic assemblies, automation systems, housings, and engineered plastic components.
Learn More →Electronics
Injection molds for electrical enclosures, connectors, consumer electronics, and industrial devices.
Learn More →Medical Devices
High-quality tooling for precision medical and healthcare components requiring repeatability and clean finishes.
Discuss Project →Industrial Equipment
Durable molds for machinery components, engineering plastics, and industrial applications.
Learn More →Telecom & Data Centres
Tooling solutions for communication equipment, cable management, electrical housings, and data centre infrastructure.
Learn More →Electrical Components
Reliable molds for switches, connectors, terminals, cable accessories, and electrical safety products.
Injection Molding →Consumer Products
Cost-effective tooling for household products, packaging, appliances, and everyday plastic components.
Get a Quote →Why Global Buyers Choose Manufyn
Manufyn simplifies mold manufacturing by combining experienced engineering, certified Indian tool rooms, structured project management, and quality inspections. We help customers reduce development risks while ensuring molds are delivered on schedule and ready for production.
| Features | Manufyn | Typical Supplier |
|---|---|---|
| DFM & Engineering Support | ✔ Included | Limited |
| Certified Tool Rooms | ✔ Yes | Varies |
| Prototype & Production Tooling | ✔ Complete Support | Usually One Only |
| Project Management | ✔ Dedicated Engineer | Limited Updates |
| Quality Inspection | ✔ Multi-stage Inspection | Basic Inspection |
| Export Experience | ✔ Global Customers | Limited |
Frequently Asked Questions
How long does mold manufacturing take?
Prototype molds typically take 2–5 weeks, while production molds generally require 6–12 weeks depending on complexity, mold size, and validation requirements.
Which mold steels do you use?
We work with P20, H13, NAK80, S136, 420 Stainless Steel, and other engineering-grade mold steels based on production volume and application.
Do you support international customers?
Yes. Manufyn manages mold manufacturing projects for customers across North America, Europe, the Middle East, and other international markets.
Can you manufacture both prototype and production molds?
Yes. We support rapid prototype tooling, bridge tooling, and hardened production molds for low, medium, and high-volume manufacturing.
Start Your Mold Manufacturing Project with Confidence
Whether you require a prototype mold, production tooling, or complete project management, Manufyn connects you with trusted Indian mold manufacturers while ensuring engineering excellence, quality assurance, and on-time delivery from concept to production.
Need a Reliable Mold Manufacturing Partner?
Whether you need prototype tooling, production molds, design support, or complete project management, Manufyn helps you source precision molds from India’s trusted manufacturing partners with quality assurance at every stage.
