Technical Brief: Precision Copper Finger Strips for Industrial EMI Shielding

Manufyn delivered zero-gap EMI shielding components for high-power inverter enclosures, achieving ISO 2768-mk tolerances across one-meter spans with a 22% cost reduction.

Project Context

A renewable energy storage company required precision-manufactured copper finger strips to seal large industrial inverter cabinets against electromagnetic interference. The strips needed to wrap continuously around enclosure doors, interlock seamlessly, and maintain an uninterrupted conductive path — all across a 1066.8 mm length.

Engineering Challenges

Working with high-purity C11000 ETP copper at this scale introduced compounding difficulties. Machining a 35° bevel across a full meter released internal stresses, causing twisting and bowing. Thermal expansion created mounting hole misalignment. The material’s tendency to tear rather than cut cleanly produced micro-burrs, and even minor surface oxidation risked degrading shielding effectiveness.

Process and Solution

Manufyn developed a stress-controlled precision machining strategy purpose-built for long-span copper components. Pre-leveled stock and controlled rest periods stabilized internal stresses before cutting. A custom long-bed vacuum fixture provided uniform clamping across the full strip length, eliminating mechanical distortion. A high-feed, light-depth cool-cut milling strategy removed heat through chips rather than the workpiece, preserving dimensional stability and hole alignment. Mirror-polished, high-rake carbide tooling produced clean interlocking edges directly on the machine — removing the need for manual deburring entirely. An anti-tarnish passivation coating was applied immediately post-machining, and each strip was shipped in custom rigid slotted inserts to prevent transit damage.

Start Your Copper Finger Strips EMI Shielding with Manufyn

How Manufyn delivered high-precision, zero-gap EMI shielding components using copper finger strips

Client Overview

This copper finger strips EMI shielding project involved a leading company in the renewable energy storage sector developing high-power inverter cabinets. These large industrial enclosures required robust electromagnetic shielding to protect sensitive electronics and meet strict performance standards.

To achieve effective copper finger strips EMI shielding, the client required precision-manufactured strips that could wrap seamlessly around enclosure doors and create a continuous electrical path without gaps. Since the cabinet dimensions were large, the strips were manufactured in one-meter lengths (1066.8 mm) and designed to interlock perfectly for uninterrupted conductivity.

Project Challenge

Executing copper finger strips EMI shielding at this scale introduced significant material and machining challenges, especially given the length and tolerance requirements.

Key challenges included:

Machining a 35° bevel across a 1-meter span, which released internal stresses and caused twisting and bowing
Managing thermal expansion and contraction of copper, leading to misalignment of six mounting holes
Handling high-purity C11000 ETP copper, which tends to tear instead of cut cleanly, creating micro-burrs
Maintaining a pristine conductive surface, where even minor oxidation could reduce EMI shielding effectiveness

Achieving a zero-gap EMI shielding system using copper finger strips required precise control over material behavior, machining processes, and surface integrity.

Engineering Approach for Copper Finger Strips EMI Shielding

To solve these challenges, Manufyn developed a stress-controlled precision machining strategy tailored for copper finger strips EMI shielding applications.

A stress-balanced milling approach with light, incremental passes prevented material distortion
A custom vacuum fixturing system ensured uniform support across the entire 1-meter strip
Secondary processes like straightening and polishing were eliminated, reducing cost
A “right-first-time” manufacturing approach minimized rework and improved efficiency

This approach ensured high-performance copper finger strips EMI shielding while optimizing both cost and lead time.

Manufacturing Process

In-House Stress Management

Leveled C11000 copper stock was used along with controlled rest periods to stabilize internal stresses, ensuring dimensional consistency for copper finger strips EMI shielding.

Custom Vacuum Fixturing

A long-bed vacuum table was engineered to provide uniform clamping, eliminating distortion caused by mechanical forces and ensuring consistent machining accuracy.

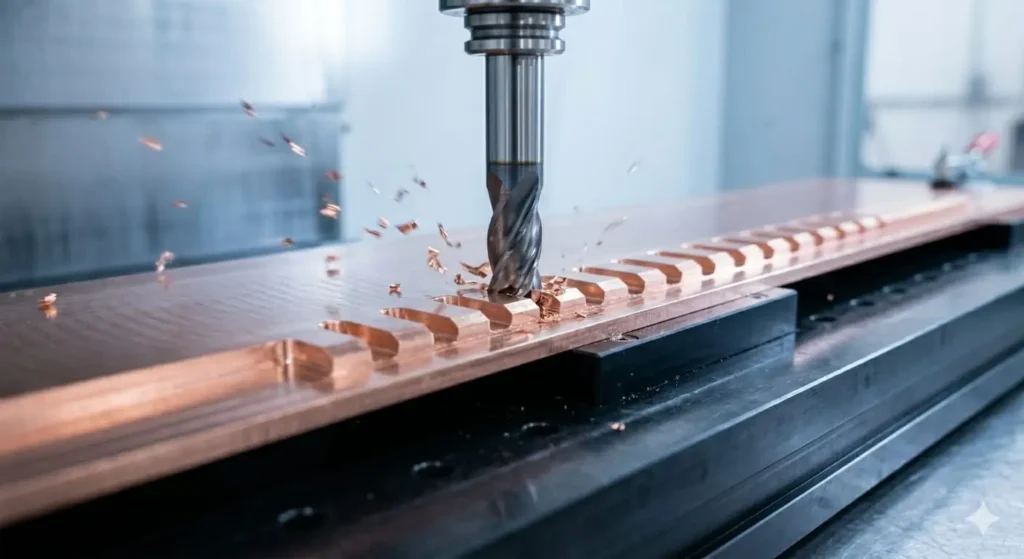

Cool-Cut High-Feed Milling Strategy

A high-feed, light-depth cutting strategy ensured heat was removed through chips rather than absorbed by the material.

Prevented material smearing
Maintained dimensional stability
Ensured precise alignment of mounting holes

High-Shear Edge Finishing

Mirror-polished, high-rake carbide tools were used to produce clean interlocking edges directly on the machine, eliminating manual deburring and improving EMI contact quality.

Surface Protection

An anti-tarnish passivation process was applied immediately after machining to preserve conductivity and maintain long-term performance of copper finger strips EMI shielding.

Precision Packaging

Each strip was packed in custom slotted rigid inserts to prevent bending or surface damage, ensuring ready-to-install condition at the client site.

Results Achieved

The copper finger strips EMI shielding solution delivered strong technical and commercial outcomes:

Achieved ISO 2768-mk tolerances across the full 1-meter length
Ensured perfect hole alignment and zero-gap interlocking fit
Eliminated secondary polishing, resulting in 22% cost reduction
Delivered parts 3 days ahead of schedule
Achieved 0% rejection rate
Maintained long-term conductivity through anti-tarnish protection

Value Delivered by Manufyn

Precision manufacturing of long-span copper finger strips for EMI shielding
Cost optimization through elimination of secondary processes
Reliable shielding performance with continuous electrical path integrity
Faster turnaround without compromising quality
End-to-end control from machining to packaging

Conclusion

This case study highlights Manufyn’s expertise in delivering copper finger strips EMI shielding solutions for demanding industrial applications. By combining stress-controlled machining, advanced fixturing, and surface protection techniques, Manufyn achieved both high precision and long-term performance reliability.
