Precision sheet metal fabrication is not a marketing term — it has a specific technical meaning. It refers to fabrication performed to ISO 2768-f (fine) tolerances or tighter — typically ±0.05mm linear and ±0.1° angular — using enhanced process controls and 100% CMM inspection. Standard sheet metal fabrication operates to ISO 2768-m (medium): ±0.15mm linear, ±0.5° angular — the grade used on 95% of all commercial and industrial parts. This guide defines precision sheet metal fabrication precisely, documents the cost premium, and gives engineers a clear decision framework.
Not sure whether your project needs precision sheet metal fabrication or standard? Manufyn’s engineers review your drawing free — we confirm which tolerance grade your application requires and what it costs.
What is Precision Sheet Metal Fabrication? (AEO Answer)
Precision sheet metal fabrication is manufacture of sheet metal parts to ISO 2768-f (fine) tolerances or tighter, ±0.05mm linear, ±0.1° angular, using enhanced process controls including CNC springback compensation, sheet levelling before cutting, nitrogen-assist laser cutting, and 100% CMM dimensional inspection. It is required for aerospace, medical, electronics, robotics and optical instrument applications where dimensional accuracy directly affects function, safety or regulatory compliance. For the full ISO 2768 tolerance tables, see our sheet metal fabrication tolerances guide.
Precision vs Standard Sheet Metal Fabrication: Tolerance Comparison
| Dimension | Standard ISO 2768-m | Precision ISO 2768-f | Cost Premium | When Precision Justified |
|---|---|---|---|---|
| Up to 30mm | ±0.15mm | ±0.05mm | +20–30% | Close-fit mating features, PCB locators |
| 30–120mm | ±0.20mm | ±0.10mm | +20–30% | Panel-to-panel assembly, rack mounting |
| 120–400mm | ±0.30mm | ±0.15mm | +25–35% | Large precision panels |
| Bend angle | ±0.5° | ±0.1°–±0.25° | +25–35% | Optical mounts, precision structures |
| Hole position | ±0.15mm | ±0.05mm | +15–25% | Bolt pattern arrays, PCB mounting |
| Flatness | ±1.0mm/m | ±0.3mm/m | +30–50% | Surface-plate mating, optical benches |
When Precision Sheet Metal Fabrication is Required
| Application | Why Precision Sheet Metal Fabrication Needed | Key Requirement |
|---|---|---|
| Aerospace structural brackets | Safety-critical — load path defined by geometry | ISO 2768-f; CMM on critical dims |
| Medical device housings | Regulatory compliance; sterile assembly fit | 100% CMM + full FAIR |
| 19″ rack-mount electronics | Rack mounting standard; inter-unit stacking | ±0.15mm on hole patterns |
| Optical instrument mounts | Angular error propagates to pointing accuracy | Bend angle ±0.1°; flatness ±0.2mm |
| Robotics end-effectors | Positional repeatability of robot path | CMM on critical features |
| EV battery enclosures | Cell stack compression; thermal management fit | ±0.10mm across 400mm+ dims |
For aerospace-specific requirements in precision sheet metal fabrication, see our aerospace sheet metal fabrication guide.
When Standard Sheet Metal Fabrication is Sufficient
| Application | Why Standard Sufficient | Tolerance Used |
|---|---|---|
| HVAC ductwork | Joints sealed; dimensional variation absorbed by sealant | ISO 2768-m |
| Structural frames | Bolt connections adjust for misalignment | ISO 2768-m or coarser |
| Industrial enclosures | No close-fit mating surfaces | ISO 2768-m general |
| Access panels | Clearance holes; gasket seals variation | ISO 2768-m general |
| Cable trays | No precision assembly requirement | ISO 2768-c (coarse) |
Process Requirements for Precision Sheet Metal Fabrication
| Stage | Standard Process | Precision Sheet Metal Fabrication Enhancement |
|---|---|---|
| Material prep | Sheet as-delivered | Sheet levelling / flattening before cutting |

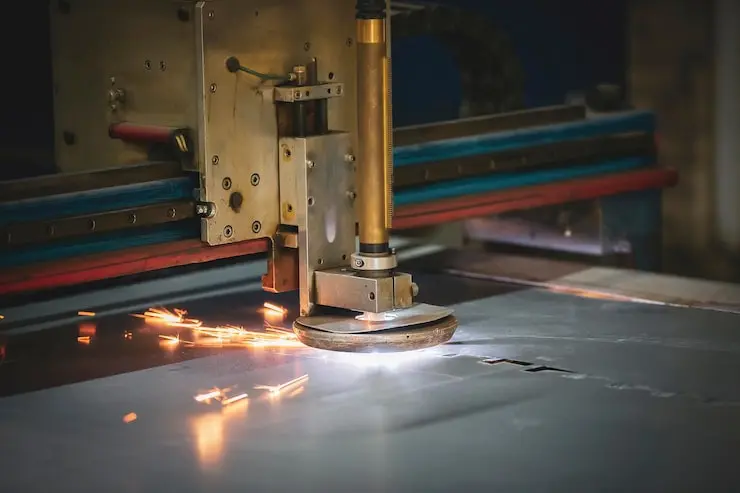

| Laser cutting | Standard speed; standard assist gas | Reduced speed; nitrogen assist; temperature-compensated CNC program |
| CNC bending | Standard springback estimate | CNC springback compensation per material batch; in-process angle measurement |
| Inspection | AQL sampling; vernier caliper | 100% CMM inspection; full FAIR with measurement data |
| Documentation | Certificate of Conformance | Full FAIR; CMM report; all process records |
Cost Premium for Precision Sheet Metal Fabrication — Itemised
- Sheet levelling before cutting: +3–5% to cutting cost
- Nitrogen assist / reduced cut speed: +8–15% to laser cost
- In-process angle measurement: +10–15% to bending cost
- 100% CMM inspection: +30–50% to inspection cost vs AQL sampling
- Full FAIR documentation: +5–10% to quality/admin cost
- Total precision premium: typically +20–40% on total part cost — see our sheet metal fabrication price guide
Most cost-effective approach: use ISO 2768-m as the general tolerance and add individual precision callouts only for the 2–5 functionally critical dimensions. This captures 80% of the standard-fabrication cost saving while achieving precision where it matters
Precision Sheet Metal Fabrication Decision Table
| My application is… | I need… | Inspection Level |
|---|---|---|
| HVAC, structural frames, industrial enclosures | Standard | AQL + CoC |
| 19″ rack-mount electronics | Standard–Precision | 100% hole pattern inspection |
| Medical device housings | Precision | 100% CMM + FAIR |
| Aerospace structural brackets | Precision | 100% CMM + FAIR + material certs |
| Optical / instrument mounts | Precision | CMM; angle measurement |
| Robotics / automation precision frames | Precision | CMM on critical features |
| General industrial machines | Standard | AQL sampling |
Need precision sheet metal fabrication or standard? Send your drawing to Manufyn — free DFM review confirms the right grade and cost before quoting. See also: sheet metal laser cutting and sheet metal assembly
Frequently Asked Questions — Precision Sheet Metal Fabrication
Precision sheet metal fabrication is manufacture to ISO 2768-f tolerances — ±0.05mm linear, ±0.1° angular — with enhanced process controls (sheet levelling, CNC springback compensation, nitrogen assist) and 100% CMM inspection. It costs 20–40% more than standard fabrication. Manufyn’s precision sheet metal fabrication service achieves laser cutting to ±0.05mm and bending to ±0.1°.
Precision sheet metal fabrication costs 20–40% more than standard at ISO 2768-m. The premium comes from slower cutting, in-process angle measurement, 100% CMM inspection and full FAIR. See our sheet metal fabrication price guide for a full cost breakdown.
Aerospace and defence, medical devices, semiconductor equipment, EV battery systems, robotics and automation, optical instruments, and 19-inch rack-mount electronics all use precision sheet metal fabrication. Standard fabrication covers HVAC, general industrial, structural and consumer product applications.
Manufyn achieves ±0.05mm on laser-cut dimensions, ±0.1° on CNC bent angles, and ±0.1mm on assembly dimensions for precision sheet metal fabrication orders. For sub-0.05mm tolerances, CNC machining is required — see our CNC machining service
