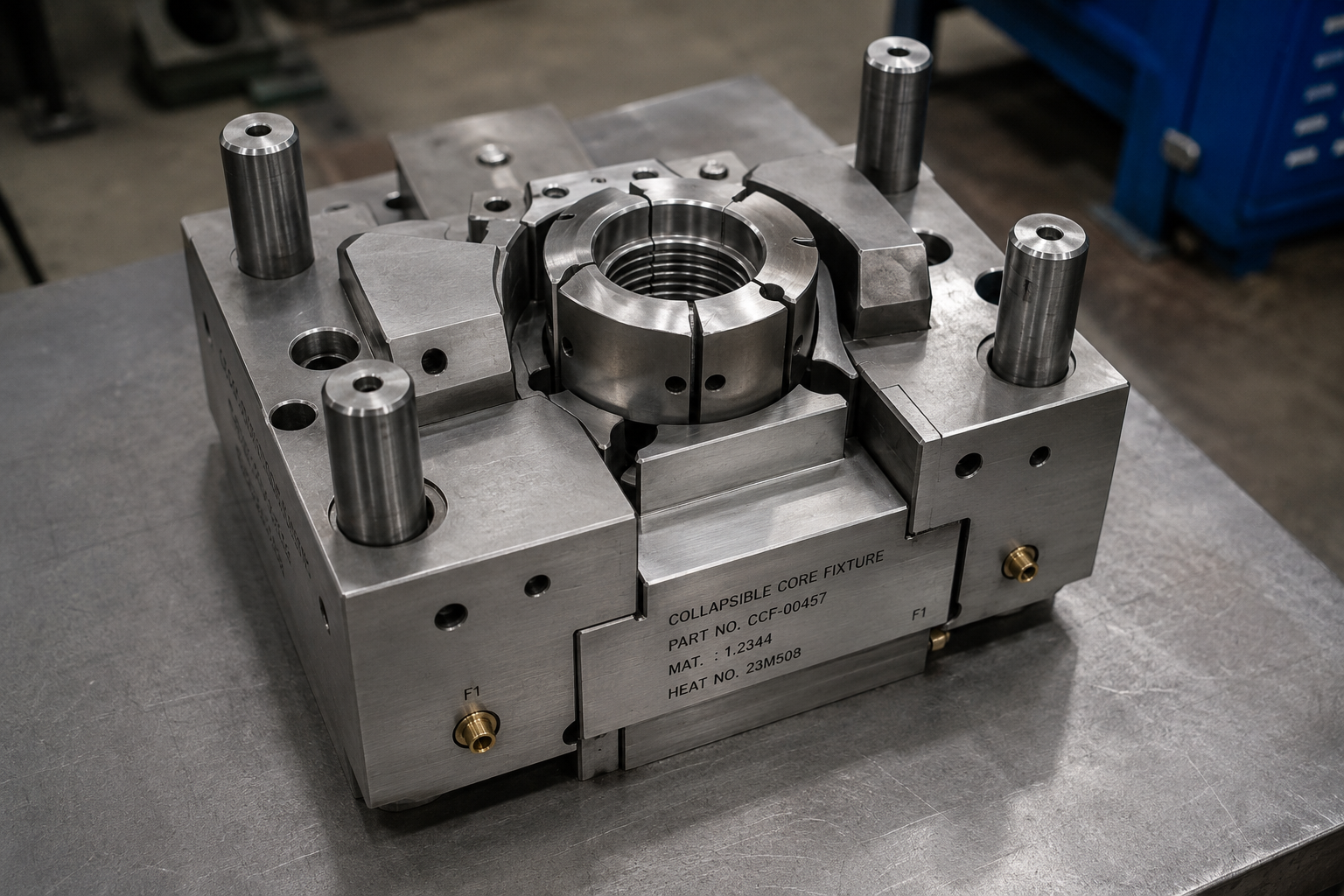

What is Collapsible Core Injection Molding?
Collapsible Core Injection Molding is an advanced mold design technique used to manufacture plastic components featuring internal threads, undercuts, grooves and complex internal geometries that cannot be released using conventional straight pull molds. The collapsible core contracts inward after the molded part cools, enabling effortless ejection without damaging delicate internal features.
Compared with unscrewing molds and side-action mechanisms, collapsible core technology reduces production cycle times, simplifies mold construction, improves dimensional consistency and lowers long-term maintenance costs. It is widely used for high-volume manufacturing where precision, repeatability and production efficiency are essential.
At Manufyn, we work with certified tooling partners across India to design and manufacture high precision Collapsible Core Molds for demanding engineering applications. From prototype tooling to serial production, we provide complete manufacturing support including mold design, DFM analysis, tooling, injection molding, quality inspection and global logistics.
Why Choose Collapsible Core Injection Molding?
Ideal for manufacturing complex plastic components while improving production efficiency, reducing tooling complexity and achieving exceptional dimensional accuracy.
✓ Internal Thread Molding
Create complex threaded plastic components without secondary machining.
✓ Internal Undercuts
Manufacture intricate internal geometries that standard molds cannot produce.
✓ Reduced Cycle Time
Faster production compared to traditional unscrewing mold technologies.
✓ High Precision
Excellent repeatability and dimensional stability for demanding engineering applications.
✓ Lower Manufacturing Cost
Eliminates secondary operations while increasing production efficiency.
✓ Global Manufacturing Support
Complete project management from tooling design through production and worldwide delivery.
How Does a Collapsible Core Injection Mold Work?
Unlike conventional straight pull molds, a Collapsible Core Injection Mold uses segmented core blades that collapse inward during mold opening. This innovative mechanism enables manufacturers to produce complex internal geometries without damaging the molded component during ejection.
1. Mold Closes
The collapsible core expands into its fully locked position before molten plastic is injected into the mold cavity.
2. Plastic Injection
Engineering thermoplastics such as Nylon, ABS, Polycarbonate, PEEK and Polypropylene completely fill the cavity while maintaining tight dimensional tolerances.
3. Cooling Stage
Controlled cooling minimizes shrinkage while maintaining the accuracy of internal threads and undercut features.
4. Core Collapses
As the mold opens, the segmented core retracts inward, releasing internal undercuts without requiring unscrewing or secondary operations.
5. Component Ejection
The finished plastic component is safely ejected with exceptional dimensional consistency and excellent surface finish.
6. Production Repeats
The core automatically resets for the next production cycle, enabling reliable high-volume manufacturing.
Advantages of Collapsible Core Injection Molding
Collapsible Core technology is widely adopted across industries where conventional tooling cannot manufacture complex internal features efficiently.
Reduced Tool Complexity
Minimizes the need for complicated side actions, unscrewing mechanisms and secondary machining processes.
Higher Production Speed
Faster molding cycles increase productivity while lowering the cost per component.
Excellent Repeatability
Ideal for automotive, aerospace and medical applications requiring consistent quality across millions of parts.
Superior Surface Finish
Delivers premium cosmetic quality while protecting delicate internal features during demolding.
Supports Engineering Plastics
Compatible with Nylon, ABS, Polycarbonate, POM, HDPE, PP, PEEK, Ultem, Acetal and many reinforced engineering polymers.
Lower Manufacturing Cost
Reduces labour, machining and assembly costs while improving production efficiency.
Complete Manufacturing Solutions from Manufyn
A successful Collapsible Core Injection Molding project often requires expertise in tooling, product development and precision manufacturing. At Manufyn, we provide end-to-end manufacturing support including Plastic Injection Molding, Injection Molding Services, Nylon Injection Molding, ABS Injection Molding, Polycarbonate Injection Molding, Insert Molding, Overmolding, Rapid Prototyping, Injection Mold Design, Mold Flow Analysis, Precision CNC Machining, 5 Axis CNC Machining, CNC Turning, Sheet Metal Fabrication, Aluminium Die Casting, Investment Casting, Closed Die Forging, Ultrasonic Welding, Product Development, Quality Inspection, Vendor Development, Supply Chain Management, Global Procurement and complete export logistics from India to customers worldwide.
Collapsible Core Injection Molding for Critical Industries
Manufyn supplies precision engineered plastic components manufactured using Collapsible Core Injection Molding for industries where dimensional accuracy, repeatability, durability and complex internal geometries are essential.
🚗 Automotive
Sensor housings, fluid connectors, cooling system components, locking mechanisms, threaded caps, fuel system parts and lightweight engineering plastic components.
🏥 Medical Devices
Disposable medical products, surgical instruments, diagnostic equipment, fluid management systems and precision threaded medical components.
⚙ Industrial Equipment
Valve components, pneumatic fittings, hydraulic connectors, filter housings, machine assemblies and automation equipment.
✈ Aerospace & Defence
High-performance engineering plastic components designed for demanding aerospace and defence applications.
🔌 Electrical & Electronics
Electrical housings, cable glands, switchgear components, connectors, insulating parts and precision plastic assemblies.
🛒 Consumer Products
Bottle closures, cosmetic packaging, appliance components, sporting goods and premium consumer products.
Typical Applications of Collapsible Core Molds
Collapsible Core technology enables engineers to manufacture plastic components that would otherwise require expensive secondary machining or complicated tooling mechanisms.
- Internal Threaded Caps
- Filter Housings
- Medical Syringe Components
- Fluid Connectors
- Quick Connect Couplings
- Valve Bodies
- Automotive Reservoir Caps
- Hydraulic Connectors
- Pneumatic Fittings
- Electrical Connectors
- Industrial Bushings
- Threaded Closures
- Pump Components
- Medical Device Housings
- Water Filtration Parts
- Plastic Nuts
- Bottle Closures
- Precision Engineering Components
Engineering Plastics Compatible with Collapsible Core Injection Molding
Choosing the right engineering polymer is critical for achieving mechanical strength, dimensional stability, chemical resistance and long service life.
Design Considerations for Collapsible Core Mold Design
Draft Angles
Proper draft angles help the segmented core collapse smoothly while preventing stress marks, scratches and damage during part ejection.
Wall Thickness
Uniform wall thickness minimizes sink marks, improves filling behaviour and reduces internal stresses.
Material Shrinkage
Engineering plastics exhibit different shrinkage rates. Proper mold compensation ensures dimensional accuracy.
Cooling System Design
Efficient cooling channels shorten cycle times while improving part consistency and mould life.
DFM Analysis
Early Design for Manufacturability (DFM) review helps optimise tooling, reduce production costs and eliminate unnecessary complexity.
Tolerance Requirements
Critical dimensions should be analysed before tool manufacture to ensure repeatable production quality.
Collapsible Core vs Other Injection Mold Technologies
Selecting the right tooling technology directly affects production cost, cycle time, mold complexity, maintenance requirements and overall product quality. Below is a comparison of commonly used injection mold mechanisms.
Engineering Success Story
High Precision Fluid Connector Manufactured Using Collapsible Core Technology
A European industrial equipment manufacturer required a lightweight engineering plastic connector featuring deep internal threads and multiple undercuts. Conventional tooling methods required secondary machining and significantly increased production costs.
After evaluating the component geometry, Manufyn’s engineering team recommended a precision Collapsible Core Injection Mold. Through detailed Design for Manufacturability (DFM) analysis and optimized cooling channel design, the tool was engineered to achieve repeatable production with minimal maintenance.
35%
Reduction in Cycle Time
99.8%
First Pass Yield
0
Secondary Machining Operations
Millions
Projected Production Capacity
Why Choose Manufyn?
Beyond manufacturing, Manufyn acts as your engineering and procurement partner, ensuring quality, transparency and reliable project execution from concept to global delivery.
Certified Manufacturing Partners
Access to qualified suppliers with ISO 9001, IATF 16949 and application-specific certifications.
Engineering & DFM Support
Tool design reviews, mold flow recommendations and manufacturability optimization before production.
Complete Project Management
Single point of contact from prototype tooling through production, inspection and export logistics.
Global Supply Chain
Reliable sourcing and delivery for customers across North America, Europe, the Middle East and Asia.
Quality Assurance
Inspection planning, dimensional reports, PPAP support and traceability for demanding applications.
End-to-End Manufacturing
Support for tooling, injection molding, CNC machining, assemblies, ultrasonic welding and export packaging.
Explore More Manufacturing Services
Learn more about our complete manufacturing capabilities including Plastic Injection Molding, Nylon Injection Molding, ABS Injection Molding, Polycarbonate Injection Molding, Insert Molding, Overmolding, Precision CNC Machining, 5 Axis CNC Machining, Rapid Prototyping, Tool Design, Ultrasonic Welding, Quality Inspection, Supply Chain Management, and Request a Manufacturing Consultation.
Frequently Asked Questions About Collapsible Core Injection Molding
Find answers to common questions about collapsible core mold design, tooling, engineering plastics, production volumes, lead times and manufacturing capabilities.
What is a collapsible core in injection molding?
A collapsible core is a precision mold mechanism that contracts inward during mold opening, allowing plastic parts with internal threads or undercuts to be ejected without damage.
When should a collapsible core mold be used?
It is recommended for components with deep internal undercuts, internal threads, grooves and complex geometries that cannot be manufactured using conventional straight pull molds.
Which materials can be molded using collapsible core technology?
Common materials include Nylon PA6, Nylon PA66, Glass Filled Nylon, ABS, Polycarbonate, Polypropylene, HDPE, Acetal (POM), PBT, PPS, PEEK and Ultem.
Can collapsible core molds produce internal threads?
Yes. They are specifically designed to produce internal threaded plastic components without requiring secondary machining or unscrewing mechanisms in many applications.
Does Manufyn provide tooling and production?
Yes. Manufyn provides complete project support including DFM analysis, tool design, mold manufacturing, injection molding, quality inspection, assembly and global delivery.
Can you manufacture prototype and production quantities?
Absolutely. We support rapid prototyping, bridge tooling, pilot production and high-volume manufacturing depending on your project requirements.
Which industries benefit most from collapsible core molds?
Automotive, medical devices, aerospace, electrical equipment, industrial automation, fluid handling systems and consumer products commonly use collapsible core tooling.
Can Manufyn export molded components worldwide?
Yes. We support international customers with export documentation, quality reports, custom packaging and global logistics.
Looking for a Reliable Collapsible Core Injection Molding Partner?
Whether you require prototype tooling, production molds or complete manufacturing support, Manufyn delivers engineering expertise, qualified manufacturing partners and end-to-end project management for customers worldwide. From product design reviews and DFM analysis to tooling, injection molding, inspection and export logistics, we help transform complex ideas into production-ready components.
