Technical Brief: Precision Machining of Large Diameter Components Using Vertical Turning Lathe (VTL)
Manufyn helped a global industrial equipment manufacturer develop large diameter precision machined components that were difficult to manufacture on conventional horizontal CNC lathes. Instead of relying on horizontal turning, we engineered the parts on a Vertical Turning Lathe to eliminate deflection and improve dimensional accuracy on heavy castings.
Key Technical Highlights:
-
Heavy Component Capability: Machined castings weighing between 200 kg and 600 kg with diameters exceeding 800 mm.
-
Engineering-First Approach: Full process validation covering fixture design, soft jaw development, and machining simulation before production.
-
Comprehensive Inspection: Multi-stage in-process and final inspection using CMM and calibrated gauges to hold concentricity below 15 microns.
This strategy shifted the approach from conventional horizontal CNC turning to gravity-stabilized vertical turning, purpose-built for large, heavy, high-precision components.
Industry
Heavy Engineering | Industrial Equipment Manufacturing | Precision Machining Services India | Large Diameter CNC Turning
Customer Challenge
A global industrial equipment manufacturer approached Manufyn to develop large diameter precision machined components including bearing housings, gear blanks, flanges, pump casings, and valve bodies. The components exceeded 800 mm in diameter, weighed between 200 kg and 600 kg, and required concentricity below 20 microns with flatness below 15 microns.
Multiple turning operations were needed on both faces, with minimal workpiece deflection and consistent repeatability across production batches. Using a conventional horizontal CNC lathe resulted in vibration, difficult loading, increased cycle time, and inconsistent dimensional accuracy.
The customer needed a manufacturing partner in India capable of engineering a more stable, production-ready process for heavy rotating equipment components.
Manufyn’s Engineering Approach

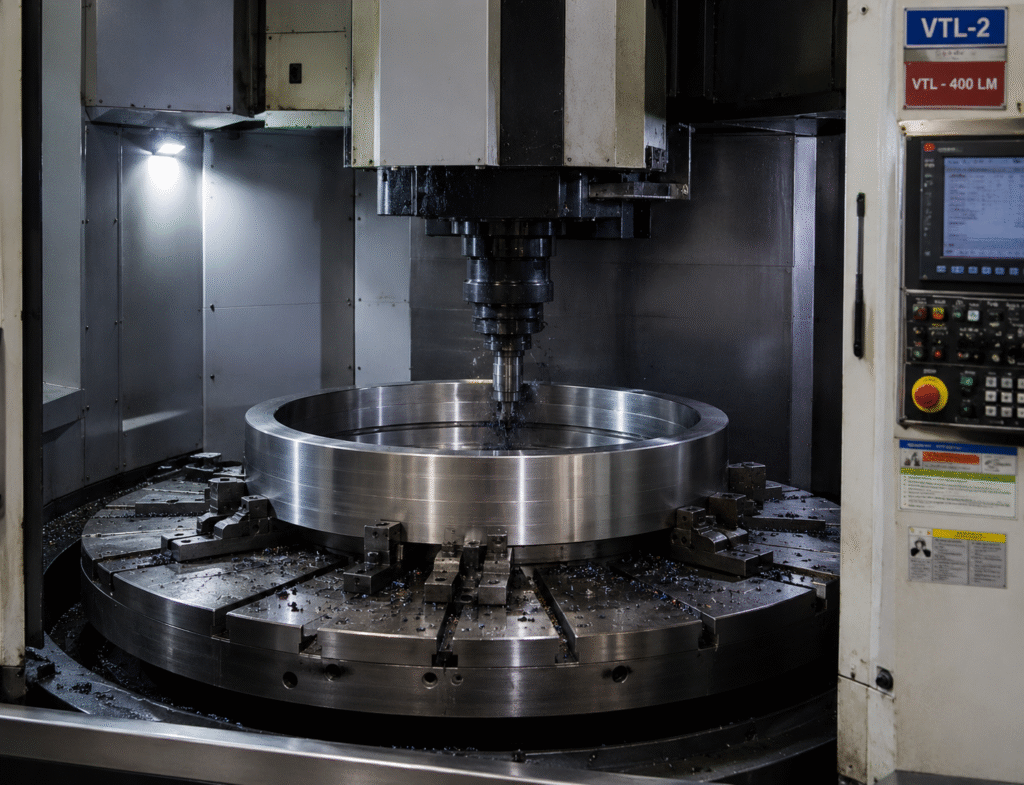

After reviewing the engineering drawings, our manufacturing engineers recommended machining the components on a Vertical Turning Lathe. The vertical spindle orientation allowed gravity to naturally support the heavy workpiece, eliminating bending forces commonly experienced in horizontal machining. The process plan focused on:
| Assessment Area | Purpose |
|---|---|
| Material Procurement & Testing | Chemical composition, ultrasonic testing, hardness and dimensional inspection of castings |
| CNC Programming | Optimize rough turning, finish turning, boring, profiling and thread cutting tool paths |
| Fixture and Soft Jaw Design | Secure heavy castings and minimize workpiece deflection |
| Machining Simulation | Validate tool paths before cutting to avoid collisions and rework |
| First Article Inspection | Confirm dimensional accuracy before full production release |
| Production Planning | Sequence operations for reduced setup time and consistent repeatability |
Unlike horizontal lathes, VTL machines use gravity to stabilize the workpiece, delivering better stability, less vibration, higher machining accuracy, better surface finish, safer handling of heavy components, faster loading and reduced setup time — ideal for large flanges, bearing housings, gear blanks and pump casings.
Manufacturing Process
The optimized vertical turning process included:
- Face turning and OD turning
- ID boring and counter boring
- Precision facing and taper turning
- Grooving and step turning
- Threading and final inspection
Each operation was optimized to reduce idle time while maintaining tight, repeatable dimensional accuracy across production batches.
Precision Inspection Strategy
Achieving this level of dimensional accuracy on large castings requires equally rigorous inspection. During production, operators conducted multi-stage checks using Coordinate Measuring Machines (CMM), bore gauges, height gauges, dial indicators, and surface roughness testers, alongside runout, flatness and concentricity verification.
Every component passed through incoming material inspection, in-process inspection, first article approval, final dimensional inspection, surface finish measurement, and dynamic balancing where applicable, with a full inspection report — CMM Report, Material Test Certificate, Heat Treatment Report and Final Inspection Report — generated before dispatch.
This layered approach, backed by process validation and full lot and material traceability, is central to Manufyn’s quality-driven contract manufacturing in India.
Results Delivered
| Performance Metric | Improvement |
|---|---|
| Setup Time | Reduced by 40% |
| Machining Cycle Time | Reduced by 28% |
| Dimensional Accuracy | Improved to ±10 microns |
| Surface Finish | Achieved Ra 0.8–1.6 µm |
| Concentricity | Maintained below 15 microns |
| Scrap Rate | Reduced by 35% |
| Overall Manufacturing Cost | Reduced by 18% |
Why the Customer Chose Manufyn
The customer selected Manufyn as their heavy component machining supplier in India because we managed the complete manufacturing lifecycle — supplier identification and vendor qualification, manufacturability assessment, engineering support and fixture design, in-process production monitoring, quality inspections, documentation management, and logistics coordination through final dispatch.
Instead of forcing large castings through a horizontal setup, our team engineered a stable, gravity-supported process built specifically around the part’s size, weight and tolerance requirements.
Our Capabilities
Manufyn supports global customers with precision manufacturing solutions across Vertical Turning Lathe (VTL) machining, CNC turning and milling, 3-axis, 4-axis and 5-axis machining, and live tooling operations — delivering wind turbine hubs, pump housings, bearing housings, industrial rollers, large flanges, hydraulic cylinders and gear blanks for oil & gas, heavy engineering, mining, wind energy, power generation, and marine engineering applications.
- First Article Inspection, PPAP and CMM inspection before production
- Custom fixtures, tooling and reverse engineering support
- Low volume prototypes through full-scale contract manufacturing in India
- Export-ready packaging and international logistics support
Conclusion
Whether you require prototype quantities or full-scale production, Manufyn helps global manufacturers machine large diameter, heavy components that demand tight concentricity, high repeatability and reliable surface finish.
Our engineering-first approach ensures every project is optimized for manufacturability, quality and cost before production begins. If your components involve large castings, heavy rotating equipment parts, or gravity-sensitive geometries, our team can support you from engineering through final delivery — as a trusted VTL machining supplier in India.
Looking for a precision VTL machining partner in India for large diameter, heavy industrial components? Share your part drawings or quality requirements to get started.
