Precision Delrin Machining for Electronic and Medical Test Fixtures

Industry

Electronics Test Fixture Manufacturing | Medical Device Components | Precision Delrin (POM) Machining for US Manufacturers | PCB Fixture Machining

Customer Challenge

A globally recognized US-based electronics and medical technology company approached Manufyn to manufacture a series of high-precision machined Delrin components for a specialized testing fixture used during product validation and quality inspection.

The application required exceptional dimensional accuracy, repeatability, and material stability, since the fixture would position delicate Printed Circuit Boards (PCBs) and electronic components during testing. Even minor dimensional deviations could result in inaccurate test data, fixture misalignment, or damage to sensitive electronic assemblies — an unacceptable risk for a US medical device validation program.

The customer needed a manufacturing partner capable of reading US-style engineering drawings and GD&T callouts, holding tight machining tolerances, and delivering consistent quality across every component in the assembly, all while reducing per-part cost compared to domestic US precision plastics machining. This is exactly the kind of application where Delrin machining for medical devices has to get every dimension right the first time.

Components Manufactured

• Base Plate
• Test Fixture QSOMR1
• PCB Support R1
• Pogo Pin Holder R1
• Top PCB Support R1
• Top PCB Lock R1
• Top PCB Supporter R1

Each component formed a critical part of the overall testing assembly and required perfect interchangeability during final fixture assembly at the customer’s US facility.

Material Selection: Why Delrin (Acetal/POM)

The customer selected Delrin because of its outstanding engineering properties: high dimensional stability, excellent wear resistance, low coefficient of friction, high mechanical strength, outstanding machinability, electrical insulation properties, moisture resistance, and long service life.

These characteristics make Delrin one of the preferred engineering plastics for electronics fixtures, medical equipment, semiconductor tooling, and precision automation applications across the US manufacturing base. Full material property data for Delrin/POM is available from MatWeb’s material property database.

Project Challenges

Although Delrin machines better than many engineering plastics, producing a multi-part precision inspection fixture presented several manufacturing challenges:

• Maintaining tight tolerances across seven interchangeable components
• Delivering burr-free surfaces to protect sensitive PCBs and electronics
• Machining sharp, accurate precision pockets for PCB positioning
• Holding pogo pin hole accuracy for reliable electrical contact
• Controlling internal stress and dimensional drift inherent to Delrin
• Guaranteeing fit-up on first assembly, with no on-site rework at the customer’s US facility

Manufyn’s Engineering Solution

Manufyn’s engineering team began with a full review of the customer’s drawings and a Design for Manufacturability (DFM) assessment before releasing the job to the shop floor. Precision CNC machining processes were implemented with in-process inspection at every stage to ensure dimensional consistency across all seven components.

Because Delrin can experience dimensional variation if machining parameters are not optimized, Manufyn selected appropriate cutting tools, spindle speeds, feed rates, and machining sequences specifically to minimize internal stress and ensure long-term dimensional stability once the fixture reached the customer’s US test lab. Advanced CNC strategies were used to hold sharp internal geometries on the PCB locating pockets, and hole position accuracy on the Pogo Pin Holder was verified with precision inspection equipment prior to shipment.

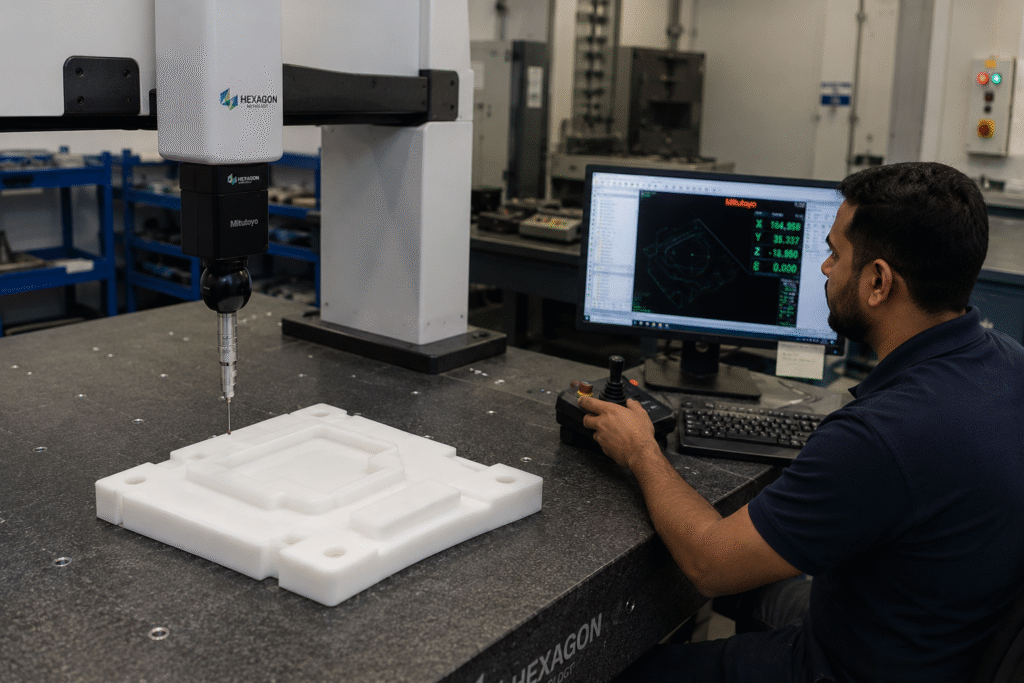

Every component underwent dimensional verification using digital measuring instruments, ensuring stable and repeatable manufacturing before the completed fixture set was released for export to the customer’s US facility.

Manufacturing Process

The complete manufacturing process included:

• Engineering drawing review
• Design for Manufacturability (DFM) assessment
• Material procurement
• CNC milling
• Precision drilling
• Pocket machining
• Profile machining
• Deburring
• Dimensional inspection
• Assembly verification
• Protective packaging
• Export documentation and shipment to the USA

Each stage was engineered to protect dimensional accuracy while keeping total lead time competitive with, or faster than, comparable domestic US machine shops.

Quality Assurance

Quality was maintained at every stage of manufacturing through First Article Inspection (FAI), in-process dimensional verification, final inspection reports, digital measuring instruments, surface finish inspection, and assembly fit verification.

Every component was inspected before dispatch to ensure complete compliance with the customer’s drawings, with full documentation provided to support the customer’s own US quality management system.

Results Achieved

Manufyn successfully manufactured and delivered the complete set of precision Delrin components within the agreed project timeline. The components assembled perfectly without modification and performed reliably within the customer’s electronic testing fixture, demonstrating Manufyn’s capability to manufacture complex engineering plastic components for demanding US electronics and medical applications.

Why Delrin Machining for Medical Devices Beats Other Engineering Plastics

For PCB and electronics test fixtures, Delrin offers a combination of properties that few engineering plastics can match: high dimensional stability under repeated use, excellent wear resistance for fixtures cycled thousands of times, natural electrical insulation, low friction for smooth locating and clamping action, and outstanding machinability for holding tight tolerances economically. This is why Delrin machining for medical devices and electronics test equipment remains the preferred choice for US test and inspection engineers.

Applications

Precision Delrin machining is ideal for manufacturing electronic test fixtures, medical device testing jigs, PCB support and locating hardware, pogo pin holders, semiconductor tooling components, precision automation guides, and low-friction wear parts for US electronics, medical device, and industrial automation OEMs.

Materials Processed

Manufyn supports precision machining of a wide range of engineering plastics for US customers, including Delrin (Acetal/POM), PEEK, Nylon, PTFE, and UHMW, in addition to aluminum and stainless steel components for hybrid metal-plastic assemblies.

Why the Customer Chose Manufyn

The customer selected Manufyn because of our ability to provide strong engineering support, expertise in precision CNC machining, experience with engineering plastics, tight tolerance manufacturing, consistent quality control, single point project management, reliable communication, on-time delivery, and global export support direct to US facilities.

Manufyn supports customers across the Electronics, Medical Devices, Industrial Automation, Semiconductor, Robotics, Aerospace, Automotive, and Consumer Product industries by offering Precision CNC Machining, Plastic Component Manufacturing, Delrin Machining, PEEK Machining, Nylon Machining, PTFE Machining, Aluminum Machining, Stainless Steel Machining, Prototype Development, Low Volume Production, Production Manufacturing, Assembly Support, Supplier Qualification, Global Procurement, Quality Inspection, and Export Logistics to the United States.

Every project is managed through a single point of contact, ensuring clear communication, faster decision making and complete traceability throughout the manufacturing lifecycle — whether a US customer needs a single prototype or high volume production.

Conclusion

By combining engineering plastics expertise, precision CNC machining, and disciplined quality control, Manufyn delivered a complete, interchangeable Delrin fixture component set that met the exacting standards of a global US electronics and medical technology company — on time, and at a lower delivered cost than comparable domestic US precision plastics machining.

Whether you require prototype quantities or high volume production, Manufyn serves as a single point of contact for US companies seeking a qualified precision manufacturing partner in India for Delrin, PEEK, Nylon, PTFE, aluminum, and stainless steel components.
