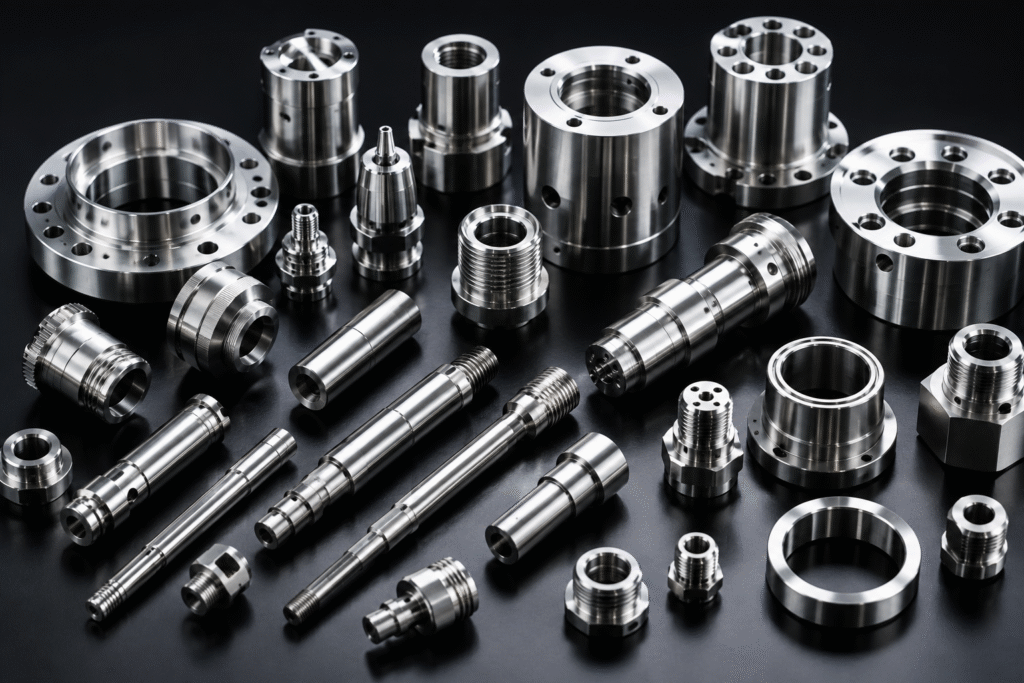

Twin Spindle CNC Turning for High Precision Machined Components

Industry

Precision Engineering | Industrial Equipment Components | Precision CNC Machining Services India | High Precision Machined Parts

Customer Challenge

A global industrial equipment manufacturer approached Manufyn for Twin Spindle CNC Turning to produce a highly complex machined component requiring multiple turning and milling operations while maintaining exceptional dimensional accuracy. The component demanded machining on both ends with extremely tight positional tolerances, making conventional machining methods inefficient and costly.

The customer’s existing manufacturing process involved multiple machines and repeated setups, resulting in longer lead times, higher inspection efforts, increased rejection rates, and inconsistent concentricity between front and back side features.

The primary objective was to develop a manufacturing solution capable of producing high precision components in a single setup while improving productivity and reducing overall manufacturing costs. Conventional CNC turning would have required transferring the part between machines, increasing setup time and introducing cumulative machining errors.

Project Challenges

The component presented several manufacturing challenges:

• Multiple machining operations on both faces of the component
• Tight dimensional tolerances of ±5 to ±10 microns
• High concentricity requirement between front and rear machined features
• Cross drilling and off center milling operations
• Threading on both sides
• Strict geometric tolerances including runout, perpendicularity and true position
• Reduced cycle time requirement for medium to high production volumes

Manufyn’s Engineering Solution

After reviewing the engineering drawings and conducting a Design for Manufacturability (DFM) study, Manufyn proposed manufacturing the component using a Twin Spindle 6 Axis CNC Turning Machine equipped with Live Tooling. This advanced machining technology enabled all turning, drilling, tapping and milling operations to be completed within a single machining cycle.

By transferring the component automatically from the main spindle to the sub spindle, both sides of the part were machined without manual intervention, eliminating the cumulative errors typical of multi-setup CNC turning.

Manufacturing Process

The Twin Spindle CNC Turning process included:

• Raw material cut to length and loaded through an automatic bar feeder
• Main spindle rough and finish turning, facing, grooving and precision diameter machining
• Live tooling for cross holes, milled flats, slots and tapped features
• Automatic sub spindle synchronization and component transfer
• Back side turning, drilling, threading and finishing operations
• Deburring, ultrasonic cleaning and final dimensional inspection

Each stage was engineered to maintain concentricity between front and back side features while reducing overall cycle time.

Quality Assurance

Quality was integrated throughout the manufacturing process. Inspection activities included First Article Inspection (FAI), in-process inspection, final dimensional inspection, surface roughness measurement, runout verification, concentricity measurement, thread gauge inspection, Coordinate Measuring Machine (CMM) validation, air gauge inspection for critical diameters, and Statistical Process Control (SPC).

Dedicated inspection fixtures and gauges were developed for repeatable measurement of critical dimensions on every production batch.

Results Achieved

The customer successfully achieved higher production output while maintaining stringent quality standards, with a manufacturing process that eliminated manual transfers entirely.

Why Twin Spindle 6 Axis CNC Turning?

Compared with conventional CNC machining, Twin Spindle Turn Mill Centers provide several advantages: single setup manufacturing, higher dimensional accuracy, reduced cumulative tolerance stack-up, faster production cycles, lower labor costs, improved repeatability, better surface finish, reduced work-in-progress inventory, higher spindle utilization, and lower manufacturing cost for medium and high production volumes.

Applications

Twin Spindle CNC Turning technology is ideal for manufacturing hydraulic components, pneumatic components, automotive shafts, medical device components, aerospace bushings, robotics parts, valve bodies, couplings, precision connectors, bearing housings, and industrial equipment components.

Materials Machined

Manufyn supports machining of a wide range of engineering materials including stainless steel, carbon steel, alloy steel, aluminium alloys, brass, copper, titanium, Inconel, tool steel, and engineering plastics including PEEK, Nylon and Delrin.

Why the Customer Chose Manufyn

Manufyn provides complete manufacturing support from concept to production through a qualified supplier network across India. Our capabilities include Design for Manufacturability (DFM), CAD support, prototype development, precision CNC machining, Twin Spindle Turn Mill manufacturing, five axis machining, supplier qualification, quality assurance, surface finishing, assembly, global export packaging, and end-to-end project management.

Every project is managed through a single point of contact, ensuring clear communication, faster decision making and complete traceability throughout the manufacturing lifecycle.

Conclusion

By leveraging advanced Twin Spindle CNC Turning technology, Manufyn transformed a complex multi-setup machining process into a streamlined single setup manufacturing solution, delivering higher accuracy, reduced cycle time, improved productivity and significant cost savings while meeting demanding international quality standards.

Whether you require prototype quantities or high volume production, Manufyn delivers precision CNC machining solutions that combine engineering expertise, robust quality systems and an extensive manufacturing network across India.
