Gas Assisted Injection Molding
Services

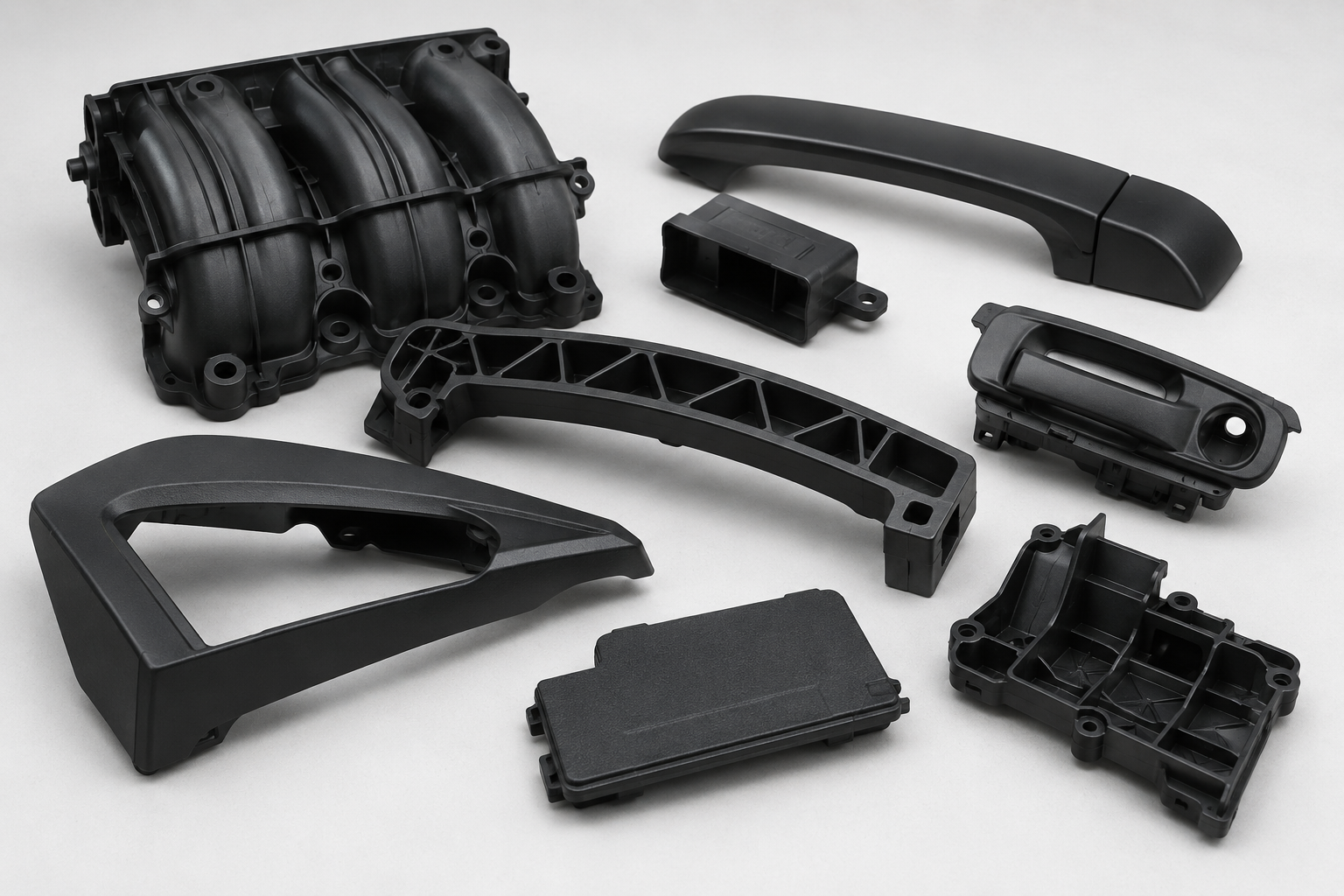

Manufyn provides end-to-end Gas Assisted Injection Molding solutions for OEMs, industrial manufacturers, automotive companies, medical device manufacturers, consumer product brands and engineering companies worldwide. From mold design and tool development to mass production and global delivery, we help businesses reduce weight, eliminate sink marks, improve surface finish and lower manufacturing costs while maintaining exceptional structural strength.
500+
Projects Supported
25+
Engineering Materials
ISO
Certified Manufacturing Partners
Global
Export to USA, Europe & Middle East
What is Gas Assisted Injection Molding?
Gas Assisted Injection Molding (GAIM) is an advanced plastic molding process in which high-pressure nitrogen gas is injected into the molten plastic immediately after the cavity is partially filled. The gas travels through the thickest sections of the component, creating hollow internal channels while forcing the plastic uniformly against the mold walls.
Unlike conventional injection molding, Gas Assisted Injection Molding significantly reduces sink marks, internal stresses, warpage, and material consumption. The result is a lightweight yet structurally strong plastic component with an excellent cosmetic finish, making it ideal for premium engineering applications.
Instead of filling an entire part with plastic, controlled nitrogen gas forms hollow sections inside the component. This lowers resin consumption, shortens cooling time, reduces cycle time, and produces stronger, more dimensionally stable parts.
Lightweight Components
Produce large plastic parts with reduced weight while maintaining high structural rigidity.
Excellent Surface Finish
Eliminate sink marks and visible defects on Class-A cosmetic surfaces.
Reduced Manufacturing Cost
Lower resin usage, shorter cycle times and reduced machine pressure help minimize production costs.
Complex Geometry
Manufacture thick-wall and intricate engineering components that are difficult to produce using conventional molding.
Why Choose Manufyn?
Manufyn partners with certified injection molding manufacturers across India to deliver high-quality Gas Assisted Injection Molded components for automotive, medical, industrial equipment, electrical, consumer products, and electronics industries. From mold design and DFM analysis to tooling, production, quality inspection, and global logistics, we provide complete manufacturing support under one roof.

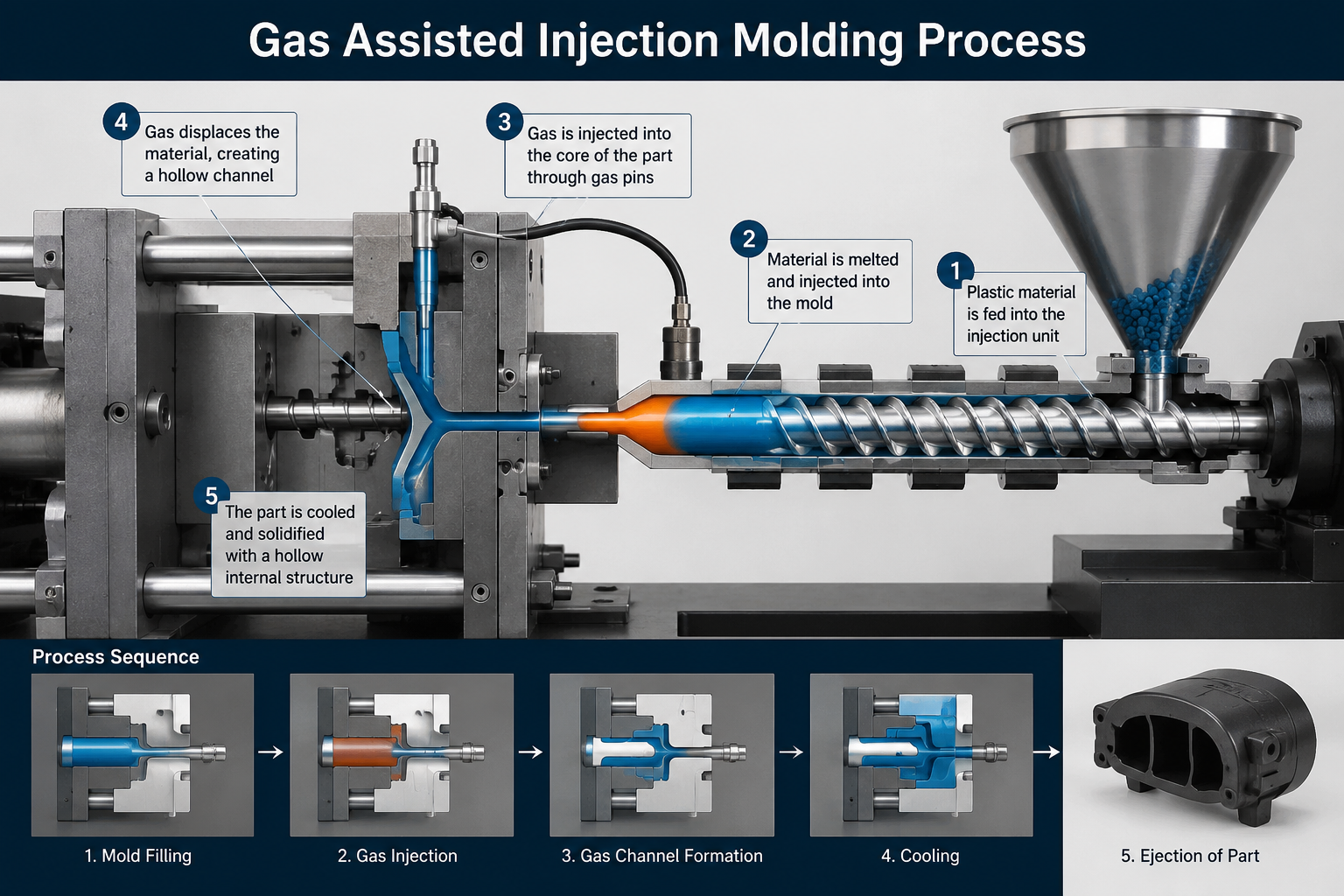

How Gas Assisted Injection Molding Works
Gas Assisted Injection Molding combines traditional injection molding with controlled nitrogen gas injection. The process enables manufacturers to create hollow sections inside plastic components, reducing material usage while improving strength, dimensional stability and cosmetic appearance.
Plastic Injection
Molten engineering plastic is injected into the mold cavity, typically filling around 70–95% of the component before gas injection begins.
Nitrogen Gas Injection
High-pressure nitrogen is introduced through specially designed gas pins. The gas travels through the thickest sections of the molten polymer.
Internal Hollow Formation
The nitrogen pushes molten plastic toward the mold walls, forming hollow channels while eliminating sink marks and reducing internal stress.
Cooling & Packing
The gas remains under pressure while the part cools, ensuring excellent dimensional stability and a premium cosmetic finish.
Part Ejection
After cooling, the gas is released and the finished lightweight component is ejected, ready for assembly or secondary operations.
Up to 30% Weight Reduction
Lower resin consumption without sacrificing structural integrity.
Material Savings
Reduced polymer usage lowers production costs for medium and high-volume manufacturing.
Premium Surface Finish
Minimizes sink marks, voids, weld lines and cosmetic imperfections.
Faster Production
Shorter cooling cycles improve productivity and reduce overall manufacturing lead time.
Why Choose Gas Assisted Injection Molding?
Gas Assisted Injection Molding has become the preferred manufacturing process for OEMs and product designers seeking lightweight, aesthetically superior, and cost-effective plastic components. By combining advanced mold engineering with controlled nitrogen gas injection, manufacturers achieve better product performance while reducing production costs.
Lightweight Components
Create hollow internal sections that reduce part weight by up to 30% without compromising mechanical strength. This is especially valuable for automotive, aerospace, furniture, and industrial equipment.
Lower Manufacturing Cost
Reduced resin consumption, lower clamp force requirements, and shorter cooling cycles contribute to significant savings across medium and high-volume production.
Excellent Cosmetic Finish
Virtually eliminate sink marks, voids, and surface imperfections, producing premium Class-A finishes suitable for visible consumer and automotive applications.
Improved Dimensional Stability
Balanced internal pressure minimizes warpage and residual stress, delivering tighter tolerances and improved consistency from part to part.
Design Freedom
Produce larger, thicker, and more complex geometries that are difficult or uneconomical to manufacture using conventional injection molding.
High Production Efficiency
Optimized cooling and packing reduce cycle time, enabling faster production and greater manufacturing throughput for demanding programs.
Conventional vs Gas Assisted Injection Molding
| Feature | Conventional Injection Molding | Gas Assisted Injection Molding |
|---|---|---|
| Material Usage | High | Reduced through hollow channels |
| Component Weight | Heavier | Up to 30% lighter |
| Sink Marks | Common in thick sections | Significantly reduced |
| Surface Finish | Good | Excellent cosmetic quality |
| Cooling Time | Longer | Shorter |
| Warpage | Higher risk | Reduced through balanced pressure |
| Production Cost | Higher material consumption | Lower overall cost for suitable parts |
Looking for High-Quality Gas Assisted Injection Molded Parts?
Manufyn works with ISO-certified manufacturing partners in India to deliver custom gas assisted injection molded components, complete tooling support, engineering review, quality inspection, and reliable global logistics. Whether you need prototypes or high-volume production, our team helps optimize cost, quality, and lead time.
Request Your Free Manufacturing ConsultationApplications of Gas Assisted Injection Molding

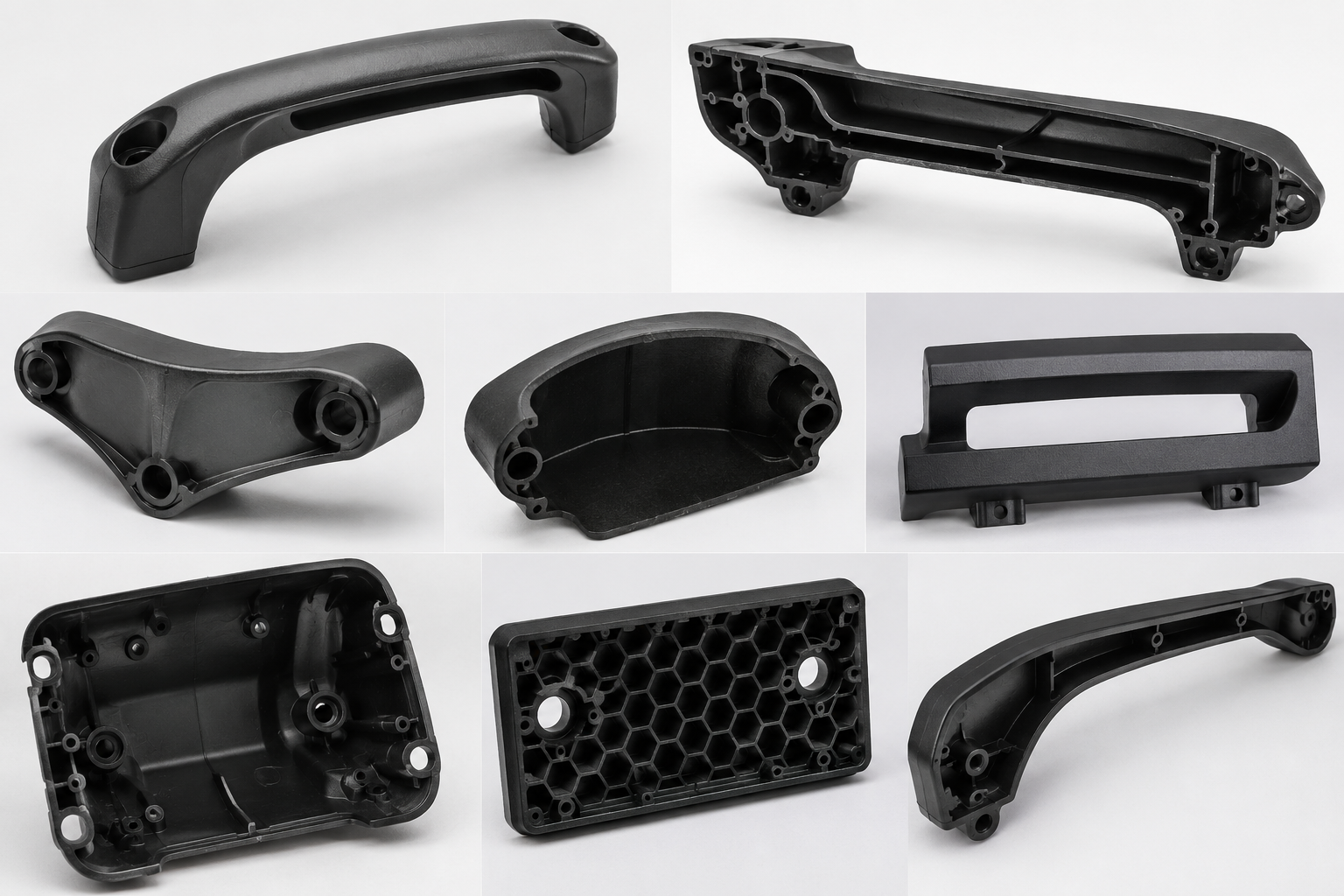

Gas Assisted Injection Molding is widely used to manufacture lightweight, structurally strong and aesthetically appealing plastic components. It is particularly beneficial for products with thick cross-sections, large dimensions or visible cosmetic surfaces where reducing weight and eliminating sink marks are important.
Automotive Components
Manufacture lightweight yet rigid automotive plastic components that improve vehicle performance while maintaining dimensional stability.
- Instrument Panels
- Door Handles
- Grab Handles
- Center Consoles
- Interior Trim
- Air Intake Components
Industrial Equipment
Produce durable engineering components capable of handling demanding industrial environments.
- Machine Covers
- Industrial Handles
- Control Housings
- Structural Brackets
- Equipment Frames
- Protective Enclosures
Electrical & Electronics
Improve structural rigidity while maintaining attractive surface quality for electrical assemblies.
- Control Panels
- Electronic Housings
- Switchgear Covers
- Electrical Cabinets
- Cable Management Parts
- Battery Enclosures
Furniture Industry
Gas assisted molding enables lightweight furniture components with exceptional stiffness and premium appearance.
- Chair Frames
- Armrests
- Office Furniture
- Table Supports
- Structural Profiles
Medical Equipment
Produce precision plastic housings and ergonomic components with excellent dimensional consistency.
- Medical Device Covers
- Diagnostic Equipment
- Portable Medical Devices
- Hospital Equipment
Robotics & Automation
Manufacture lightweight structural parts that help reduce moving mass while maintaining high strength.
- Robot Covers
- Sensor Housings
- Automation Frames
- End-of-Arm Tooling Components
Why OEMs Prefer Gas Assisted Injection Molding
As industries continue to demand lighter, stronger and more sustainable products, Gas Assisted Injection Molding has become a preferred manufacturing process. By replacing solid plastic sections with hollow internal channels, manufacturers can significantly reduce raw material consumption while maintaining structural performance.
The process also improves cosmetic quality, minimizes post-processing, shortens cycle time and enables innovative product designs that would be difficult or costly to manufacture using conventional injection molding techniques.
Materials Suitable for Gas Assisted Injection Molding
Selecting the right thermoplastic is essential to achieve the desired mechanical performance, surface finish, dimensional stability, and long-term durability. Manufyn supports a wide range of engineering-grade materials for custom Gas Assisted Injection Molding applications across automotive, industrial, medical, consumer, and electronics industries.
Commodity Plastics
Ideal for cost-sensitive, high-volume production while providing excellent moldability and consistent performance.
- Polypropylene (PP)
- High Density Polyethylene (HDPE)
- Low Density Polyethylene (LDPE)
- ABS
- Polystyrene (PS)
- SAN
Engineering Plastics
Recommended where higher mechanical strength, wear resistance, impact performance and dimensional accuracy are required.
- Polycarbonate (PC)
- PC + ABS
- Nylon PA6
- Nylon PA66
- PBT
- POM (Acetal / Delrin)
- PET
High Performance Materials
Designed for demanding applications involving elevated temperatures, chemicals and structural loads.
- Glass Filled Nylon
- PPS
- PEEK
- PEI (Ultem)
- Torlon (PAI)
- LCP
- Carbon Filled Polymers
| Material | Major Advantages | Typical Applications |
|---|---|---|
| Polypropylene (PP) | Lightweight, chemical resistant, economical | Automotive trims, appliance components, packaging |
| ABS | Excellent appearance and impact strength | Consumer products, electronics housings |
| Polycarbonate (PC) | High impact resistance and transparency | Medical devices, industrial covers, electrical parts |
| Nylon PA6 / PA66 | High mechanical strength and wear resistance | Automotive, machinery, gears, structural components |
| Glass Filled Nylon | Excellent stiffness and dimensional stability | Industrial machinery, robotics, automotive systems |
| PBT | Electrical insulation and heat resistance | Electrical connectors, automotive electronics |
| POM (Acetal) | Low friction and high precision | Mechanical assemblies, precision engineering |
| PEEK | Extreme temperature and chemical resistance | Aerospace, semiconductor, medical, oil & gas |
| Torlon (PAI) | Exceptional wear resistance and strength | High-performance industrial applications |
Engineering Support from Material Selection to Production
Choosing the correct resin involves balancing mechanical performance, operating temperature, dimensional stability, chemical resistance, aesthetics, and cost. Manufyn’s engineering team assists customers in selecting the most appropriate material for Gas Assisted Injection Molding projects, while also providing Design for Manufacturability (DFM), mold flow recommendations, tooling development, quality inspection, and full-scale production support. We also support specialized materials such as Glass Filled Nylon, Torlon®, PEEK, and other high-performance polymers for demanding industrial applications.
Your Trusted Partner for Gas Assisted Injection Molding
At Manufyn, we help global OEMs, product designers, and procurement teams transform ideas into production-ready plastic components. Through our network of qualified manufacturing partners in India, we provide complete support from design review and tooling to production, quality inspection, and worldwide delivery.
Design for Manufacturability (DFM)
Our engineering team reviews every design to optimize wall thickness, gas channels, gate location, and manufacturability before tooling begins.
Precision Tool Development
Custom injection molds are developed using modern CNC machining, EDM, wire cutting, and precision inspection to ensure consistent production quality.
Material Selection Support
We assist in selecting the right engineering polymer based on strength, weight, temperature resistance, wear characteristics, and cost targets.
Prototype to Production
Whether you need prototype validation or high-volume manufacturing, our team supports every stage of your product lifecycle.
Quality Inspection
Every project follows documented inspection procedures using calibrated measuring equipment to ensure dimensional accuracy and repeatability.
Global Supply Chain Support
We export custom plastic components to customers across North America, Europe, and other international markets with reliable logistics and project management.
Our Manufacturing Workflow
RFQ Review
Technical evaluation of drawings, specifications, and production requirements.
DFM Analysis
Engineering optimization for moldability, cost reduction, and improved part performance.
Tool Development
Precision mold manufacturing with complete project monitoring.
Sample Validation
Dimensional inspection, customer approval, and process optimization.
Mass Production
Consistent manufacturing supported by documented quality systems.
Inspection & Delivery
Final quality verification, export packaging, and on-time international shipment.
Complete Manufacturing Support Under One Roof
Beyond Gas Assisted Injection Molding, Manufyn also supports conventional injection molding, insert molding, overmolding, two-shot injection molding, collapsible core tooling, CNC machining, rapid prototyping, product development, procurement services, and supplier quality management. By combining engineering expertise with a qualified manufacturing network, we simplify sourcing while helping customers reduce cost, improve quality, and accelerate product launches.
Request a Manufacturing ConsultationGas Assisted Injection Molding Design Guidelines
Successful Gas Assisted Injection Molding begins with thoughtful part design. Proper wall thickness, gas channel placement, gate location, and material selection help achieve consistent gas penetration, superior cosmetic appearance, and excellent structural performance while reducing manufacturing costs.
Wall Thickness & Gas Channels
Uniform wall thickness promotes balanced material flow and predictable gas penetration. Thick sections should be designed where the gas is intended to travel, allowing hollow channels to form naturally.
- Avoid abrupt wall thickness transitions.
- Maintain smooth flow paths for nitrogen gas.
- Use generous radii at corners.
- Reduce isolated thick masses to minimize sink marks.
Gate & Runner Design
Gate placement directly affects filling behavior and gas penetration. The gate should encourage uniform filling before gas injection begins.
- Position gates near thicker sections.
- Avoid trapping gas in closed cavities.
- Balance runners for multi-cavity molds.
- Consider mold flow analysis during tool design.
Structural Features
Ribs, bosses, and reinforcing features should complement the gas-assisted process rather than restrict gas flow.
- Use generous draft angles for easy ejection.
- Design ribs with consistent proportions.
- Avoid unnecessary solid masses.
- Round internal corners wherever possible.
Manufacturing Optimization
Early engineering involvement helps reduce tooling modifications, cycle time, and overall manufacturing costs.
- Perform Design for Manufacturability (DFM).
- Validate design using Mold Flow Analysis.
- Select materials based on mechanical requirements.
- Optimize cooling and venting strategies.
| Design Parameter | Recommendation | Benefit |
|---|---|---|
| Wall Thickness | Maintain consistent wall sections where possible | Improves filling and reduces warpage |
| Corner Radius | Use smooth internal and external radii | Enhances gas flow and lowers stress concentration |
| Draft Angle | Provide adequate draft for ejection | Reduces part damage during mold release |
| Gate Location | Near thick sections or primary gas channels | Supports stable gas penetration |
| Gas Channel Path | Continuous and unobstructed | Ensures uniform hollow core formation |
| Material Selection | Match resin to application requirements | Optimizes strength, finish, and durability |
| Mold Flow Analysis | Recommended before tooling | Reduces development risk and tooling revisions |
Engineering Recommendations from Manufyn
- Involve manufacturing engineers during the product design stage to improve moldability and reduce tooling costs.
- Conduct Design for Manufacturability (DFM) and Mold Flow Analysis before finalizing tooling.
- Select engineering-grade polymers based on operating temperature, mechanical load, chemical exposure, and dimensional requirements.
- Prototype and validate critical features before committing to high-volume production.
- Where appropriate, combine Gas Assisted Injection Molding with complementary processes such as insert molding, overmolding, or two-shot molding to create multifunctional components.
Complete Gas Assisted Injection Molding Capabilities
Manufyn provides complete project management for Gas Assisted Injection Molding—from engineering consultation and mold development to production, inspection, assembly, and global delivery. Our qualified manufacturing partners are equipped to support prototype, low-volume, and high-volume production requirements across multiple industries.
Injection Molding Capabilities
- Machine Capacity: 50T to 2500T
- Prototype, bridge, and production tooling
- Single-cavity and multi-cavity molds
- Hot runner and cold runner systems
- Gas-assisted mold technology
- Engineering-grade thermoplastics
- High-volume manufacturing support
- Insert and threaded component integration
Secondary Operations
- Ultrasonic welding
- CNC machining
- Drilling and tapping
- Laser marking
- Pad printing
- Heat staking
- Product assembly
- Custom packaging and labeling
| Capability | Supported Range |
|---|---|
| Production Volume | Prototype to High-Volume Manufacturing |
| Machine Tonnage | 50T – 2500T |
| Tool Type | Single, Multi-Cavity, Family & Hot Runner Molds |
| Materials | PP, ABS, PC, PA6, PA66, PBT, POM, PPS, PEEK, PEI, Glass Filled Nylon and more |
| Typical Industries | Automotive, Medical, Electronics, Industrial Equipment, Consumer Products, Robotics |
| Inspection Equipment | CMM, Height Gauge, Vision Systems, Digital Measuring Instruments |
| Export Support | Worldwide Packaging, Documentation & Logistics |
| Engineering Support | DFM, Mold Flow Analysis, Tool Design & Project Management |
50–2500T
Injection Molding Machines
100+
Engineering Materials Supported
Prototype
to Production Manufacturing
Global
Export & Supply Chain Support
Ready to Start Your Gas Assisted Injection Molding Project?
Whether you need help selecting the right material, optimizing part design, developing tooling, or scaling to mass production, Manufyn’s engineering and procurement specialists are ready to support your project. Send us your 3D model, 2D drawing, or RFQ, and we’ll provide a detailed manufacturing review and quotation.
Request Your Free QuoteGas Assisted Injection Molding Solutions for Diverse Industries
Manufyn supports customers across multiple industries by delivering precision Gas Assisted Injection Molded components engineered for performance, durability, and cost efficiency. Whether your requirement is for lightweight structural parts or premium cosmetic components, our engineering team can support projects from concept to production.
Automotive
Lightweight, high-strength plastic components for interior, exterior, and under-the-hood applications.
- Door Handles
- Dashboard Components
- Console Assemblies
- Air Ducts
- Grab Handles
Electrical & Electronics
Precision molded housings with excellent surface finish and dimensional stability.
- Electronic Enclosures
- Battery Housings
- Switchgear Components
- Industrial Control Panels
Medical Equipment
Reliable engineering plastics for medical devices and diagnostic equipment requiring high consistency.
- Medical Device Covers
- Equipment Housings
- Portable Diagnostic Units
- Laboratory Equipment
Robotics & Automation
Reduce moving mass while maintaining rigidity for advanced robotic and automation systems.
- Robot Covers
- Automation Frames
- Sensor Housings
- EOAT Components
Furniture & Consumer Products
Premium cosmetic parts and lightweight structural components for commercial and residential products.
- Chair Frames
- Armrests
- Furniture Supports
- Appliance Handles
Industrial Machinery
High-performance engineering components for demanding industrial applications.
- Machine Covers
- Equipment Housings
- Structural Supports
- Industrial Handles
Supporting Global OEMs with Reliable Manufacturing
From prototype development to full-scale production, Manufyn works with qualified manufacturing partners to supply precision plastic components for customers across North America, Europe, the Middle East, and Asia. Our integrated engineering, quality, and logistics support simplifies procurement while maintaining consistent product quality and competitive lead times.
50+
Engineering Polymers
100%
Custom Manufacturing
Global
Export Support
OEM
Project Management
Quality Control Throughout Every Manufacturing Stage
Consistent quality begins long before production starts. Manufyn coordinates engineering reviews, process planning, production monitoring, and inspection activities to help ensure every Gas Assisted Injection Molded component meets customer requirements for dimensions, appearance, functionality, and repeatability.
Drawing Review
Engineering review of 2D drawings, 3D CAD models, material specifications, and critical characteristics before tooling approval.
Tool Validation
Tool verification, trial runs, dimensional assessment, and process optimization before production release.
In-Process Inspection
Regular dimensional checks and visual inspections during manufacturing to maintain process consistency.
Final Inspection
Finished components are inspected against agreed specifications prior to packing and shipment.
Packaging & Dispatch
Protective packaging, labeling, documentation, and shipment preparation for domestic and international deliveries.
Inspection Capabilities
- First Article Inspection (FAI)
- Dimensional verification using calibrated instruments
- Coordinate Measuring Machine (CMM) inspection where required
- Visual and cosmetic inspection
- Material verification as specified by the project
- Sampling plans based on customer requirements
- Critical dimension monitoring
- Inspection reports with production documentation
Project Documentation Support
- Control Plans (where applicable)
- Process Flow Documentation
- Inspection Reports
- Material Certificates (when specified)
- First Article Reports
- Production Part Approval documentation (if contractually required)
- Traceability support for approved projects
- Export documentation and packaging records
Reliable Quality for Global Manufacturing Programs
Whether your project requires prototype validation, pilot production, or full-scale manufacturing, Manufyn works with qualified manufacturing partners to maintain consistent quality throughout the production lifecycle. Our focus is on clear communication, documented inspection activities, and dependable project management to help reduce risk and support on-time delivery.
Incoming Checks
Material and tooling verification before production begins.
Process Monitoring
Regular production checks to maintain process stability.
Final Verification
Inspection of finished parts before packing and dispatch.
Global Shipping
Export-ready packaging and documentation for international customers.
Gas Assisted Injection Molding FAQs
Find answers to common questions about Gas Assisted Injection Molding, including materials, applications, tooling, production volumes, and engineering support.
What is Gas Assisted Injection Molding?
What are the advantages of Gas Assisted Injection Molding?
- Reduced component weight
- Lower resin consumption
- Excellent cosmetic finish
- Reduced sink marks
- Improved dimensional stability
- Lower production costs for suitable designs
Which materials can be used?
Which industries use Gas Assisted Injection Molding?
Can Manufyn support prototype and production quantities?
Does Manufyn provide tooling development?
Do you export internationally?
How do I get a quotation?
Ready to Manufacture High-Quality Gas Assisted Injection Molded Parts?
Whether you’re developing a new product or optimizing an existing design, Manufyn can support you from engineering review and mold development through production, inspection, and global delivery. Our team works closely with OEMs, startups, and procurement professionals to deliver reliable manufacturing solutions tailored to your project.
Our related capabilities include:
• Injection Molding Services
• Two Shot Injection Molding
• Insert Molding
• Overmolding
• Glass Filled Nylon Injection Molding
• Torlon Injection Molding
• Tool Design & Development
• CNC Machining Services
• Rapid Prototyping
• Procurement & Supplier Development
